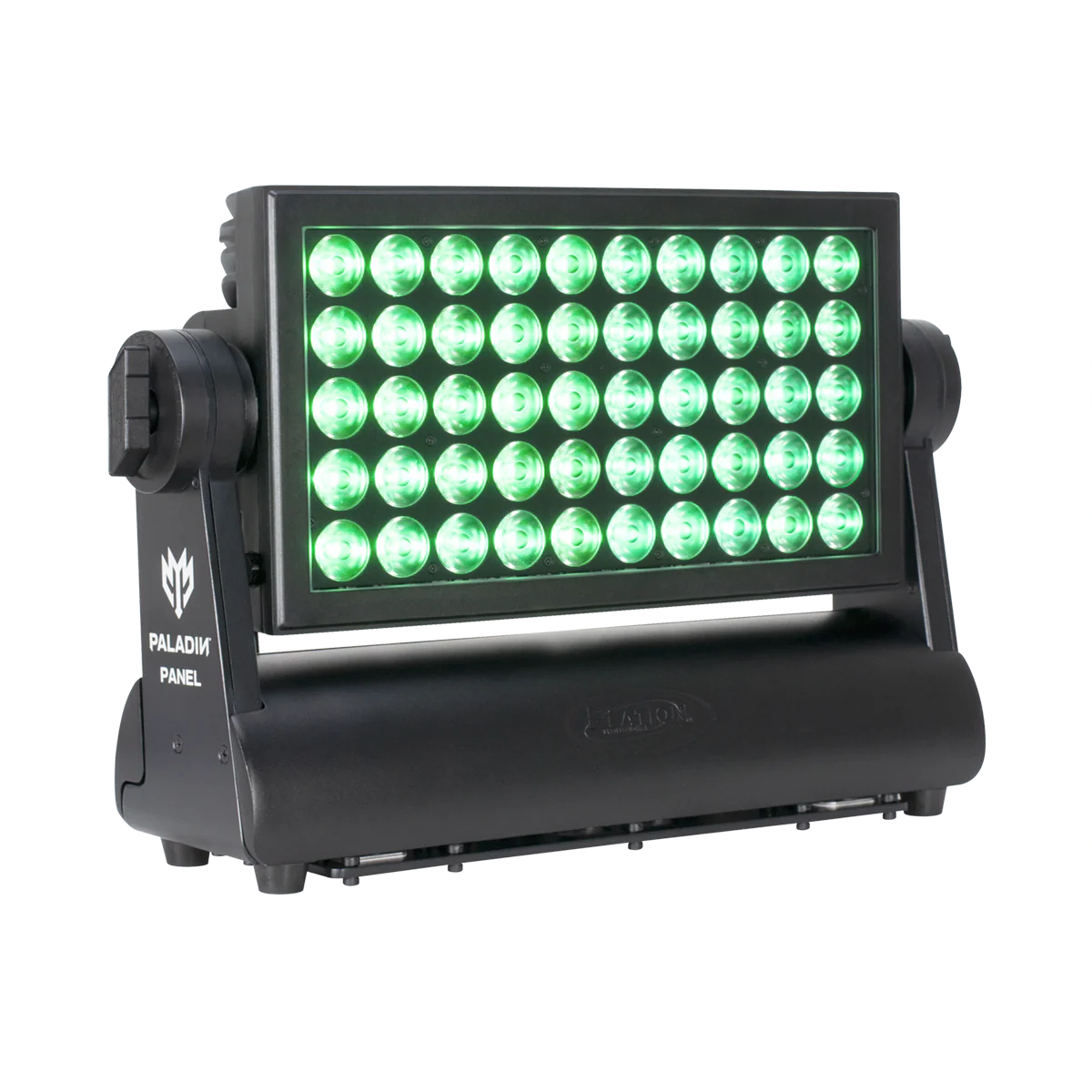

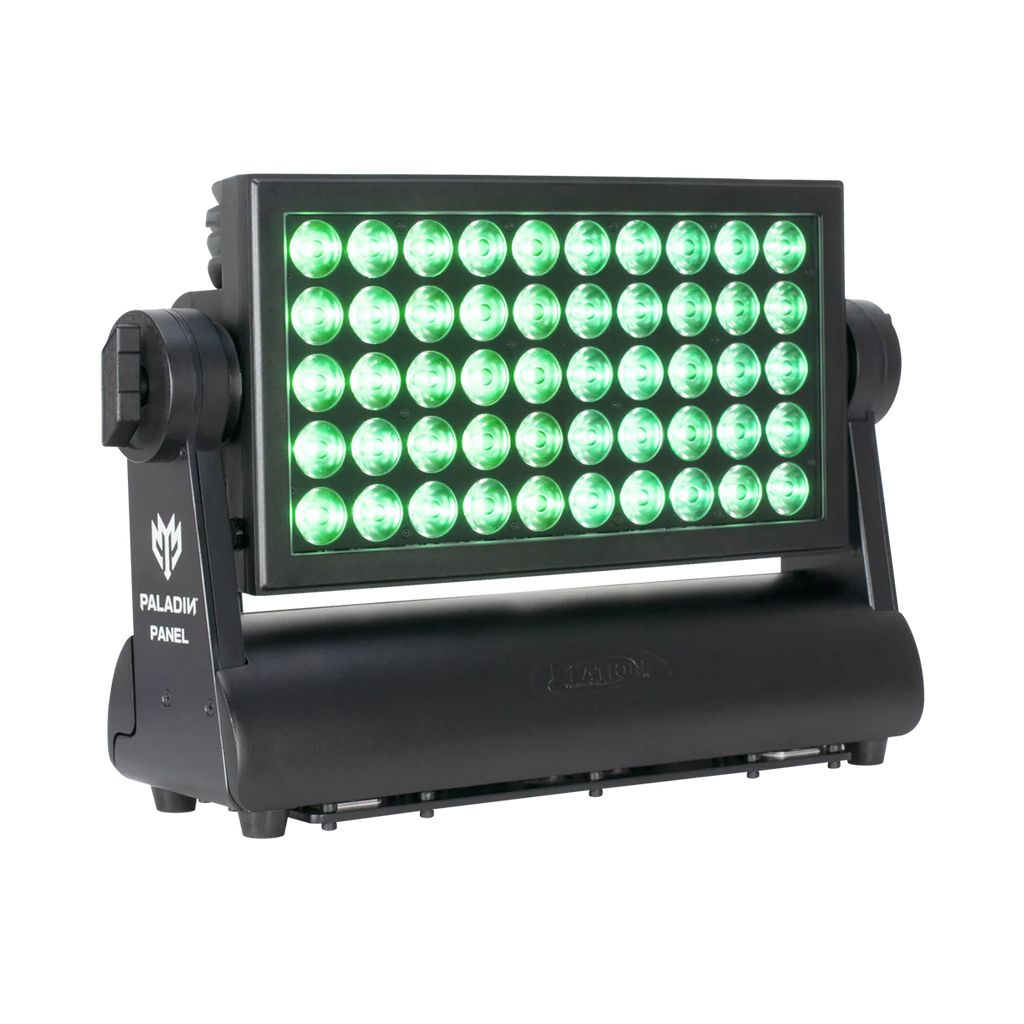

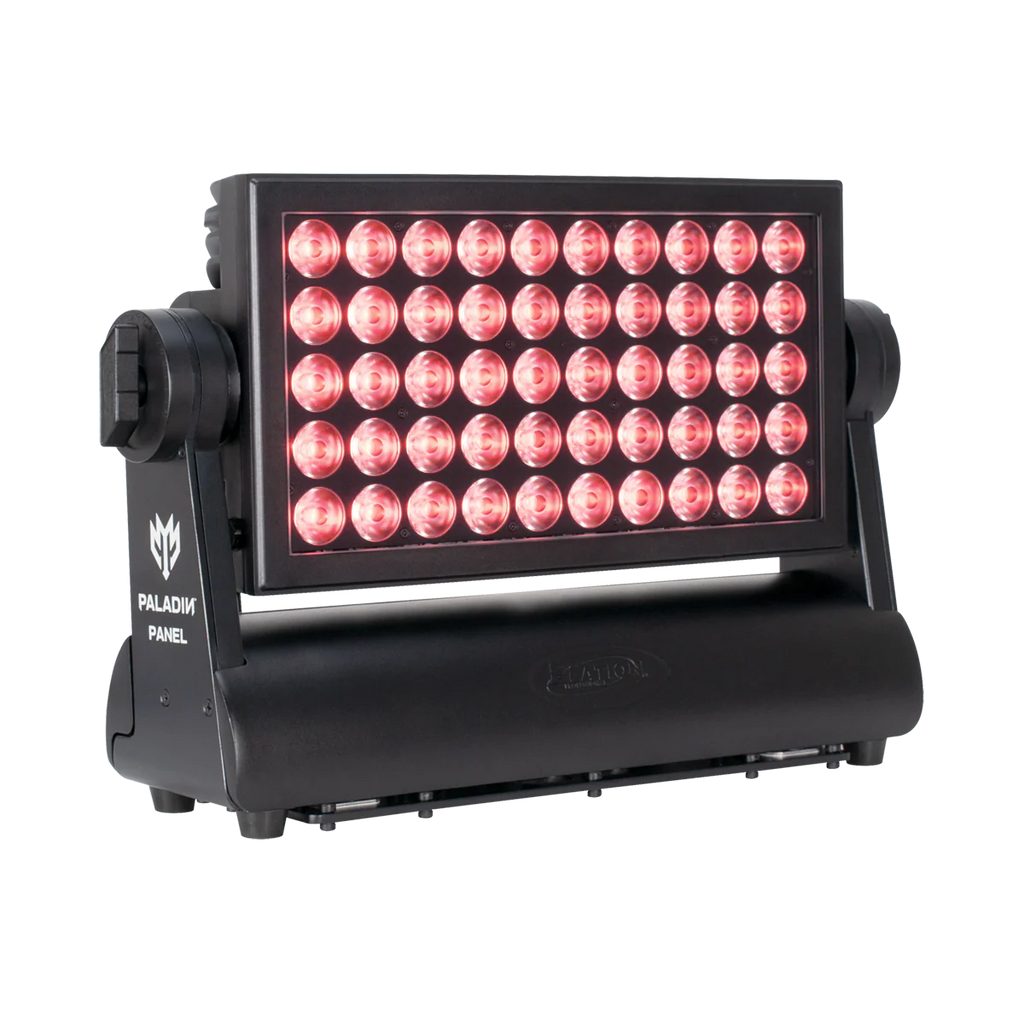

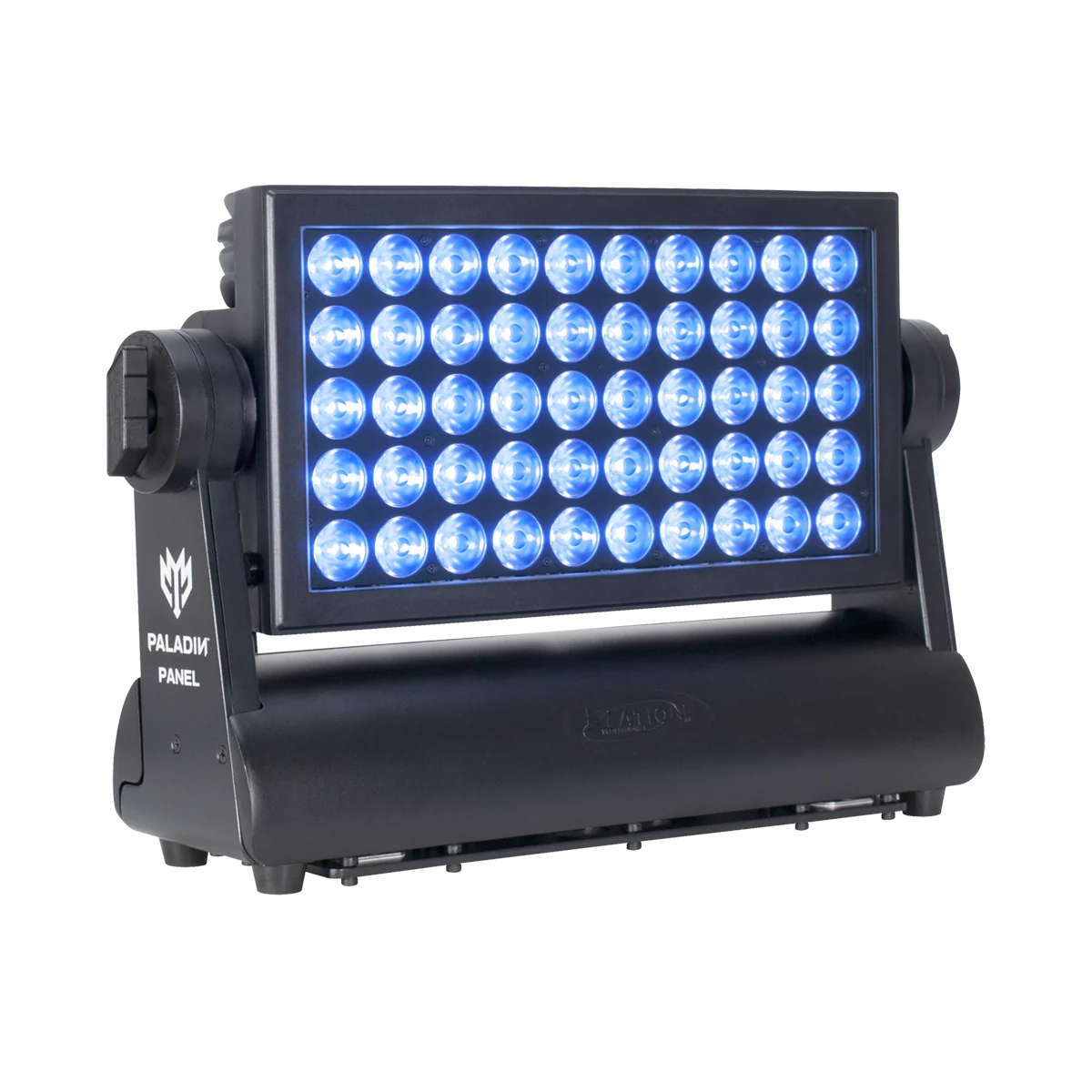

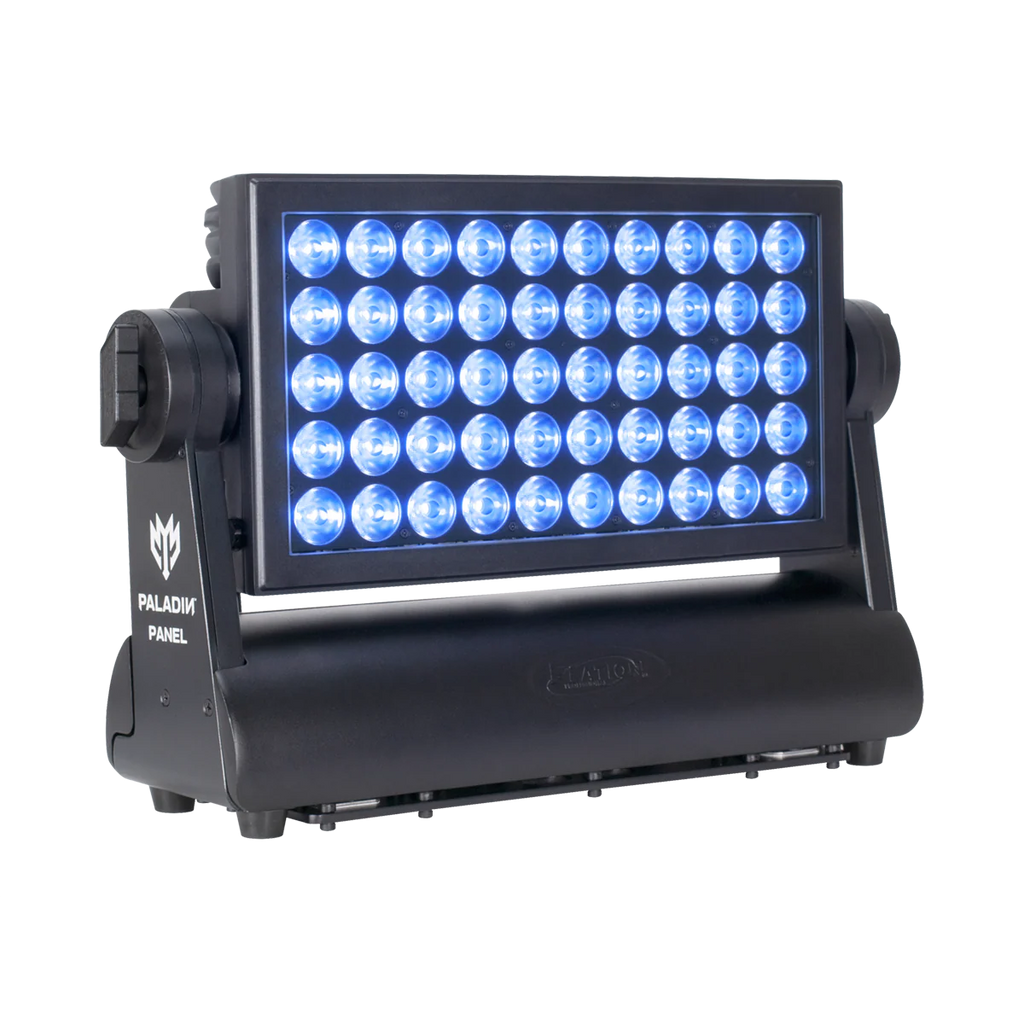

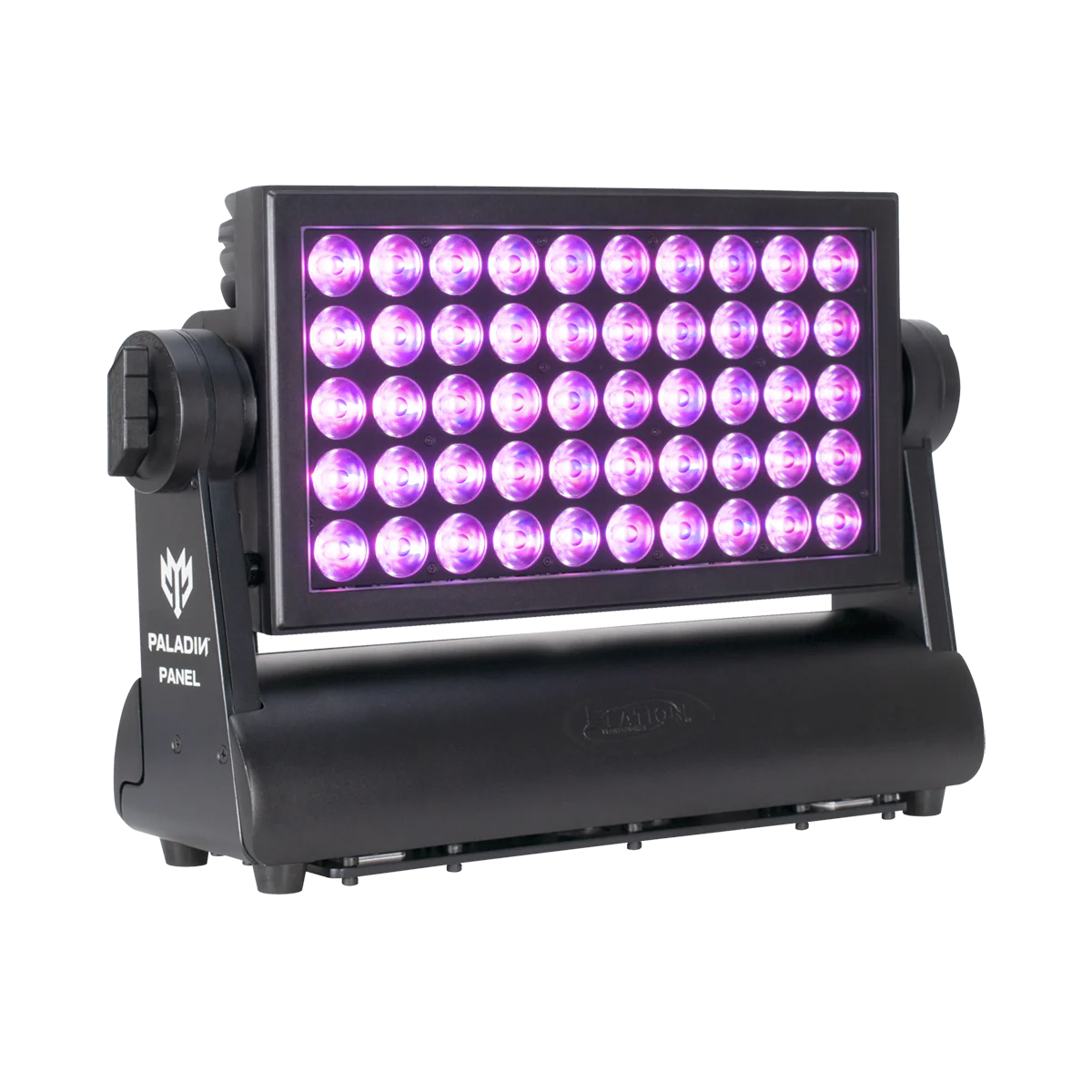

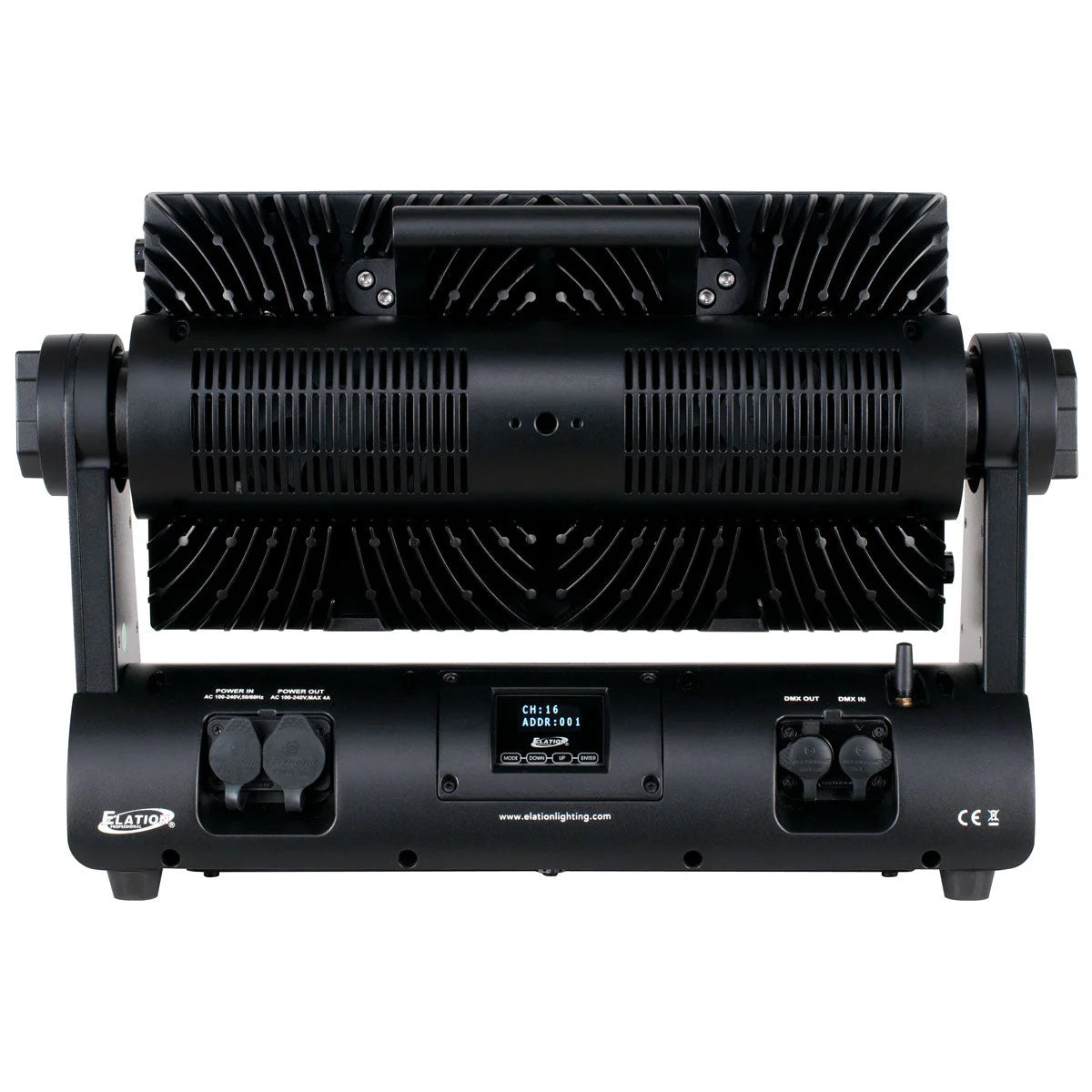

PALADIN PANEL is a professional-grade lighting solution. Using 50x15W RGBW cells it provides a total output of up to 20,000 lumens. Certified to IP65 it features a rugged design with a solid build quality, eliminating the need to worry about dust and water ingress. IP rated connections make it an ideal product to illuminate large areas of any outdoor event with vibrant and powerful colors. Available cell control and strobe features make the PALADIN PANEL also a versatile effects fixture or audience blinder.
- SPECIFICATIONS
- 50x 15W RGBW LED Emitters
- 50,000 Hour Average LED Life*
- *Test lab conditions. May vary depending on several factors including but not limited to: Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control, and Dimming.
PHOTOMETRIC DATA
- 6,000K Color Temperature
- 20,000 Total Lumen Output
- 13.5° Beam 24.3° Field Angle (without diffuser)

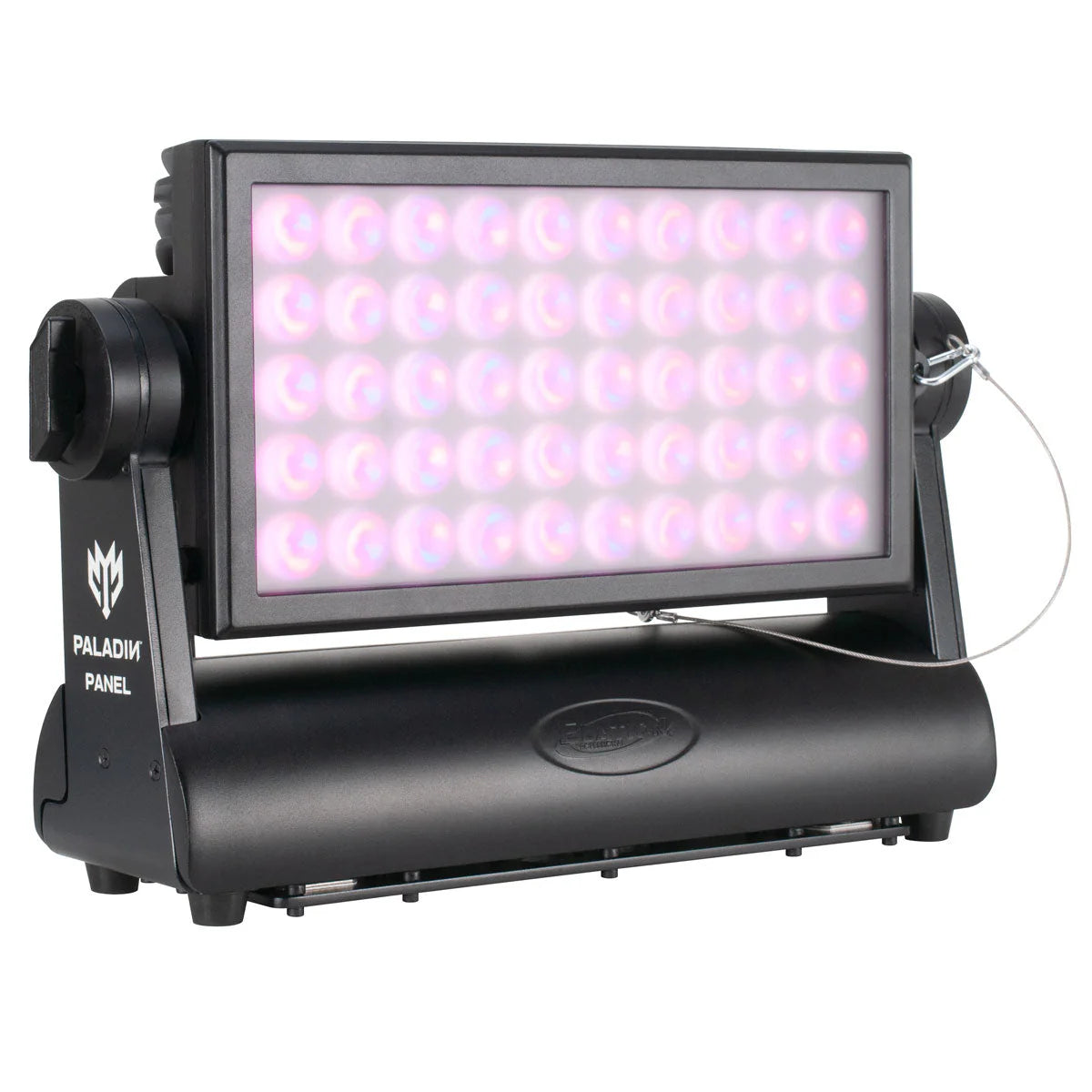

- 25.2° Beam 50.1° Field Angle (with diffuser)
CONTROL / CONNECTIONS
- 11 DMX Channel Modes (88 Total Channels)

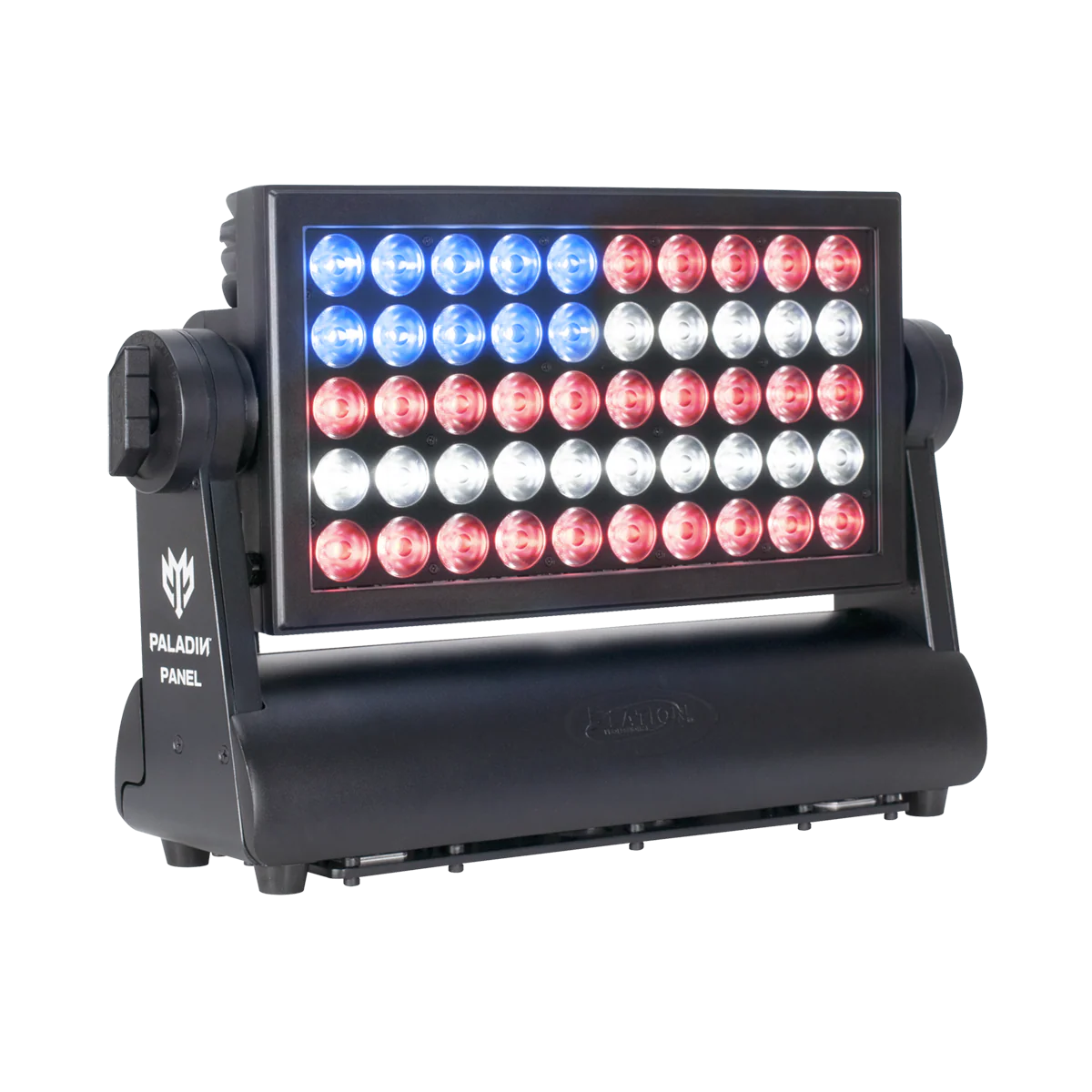

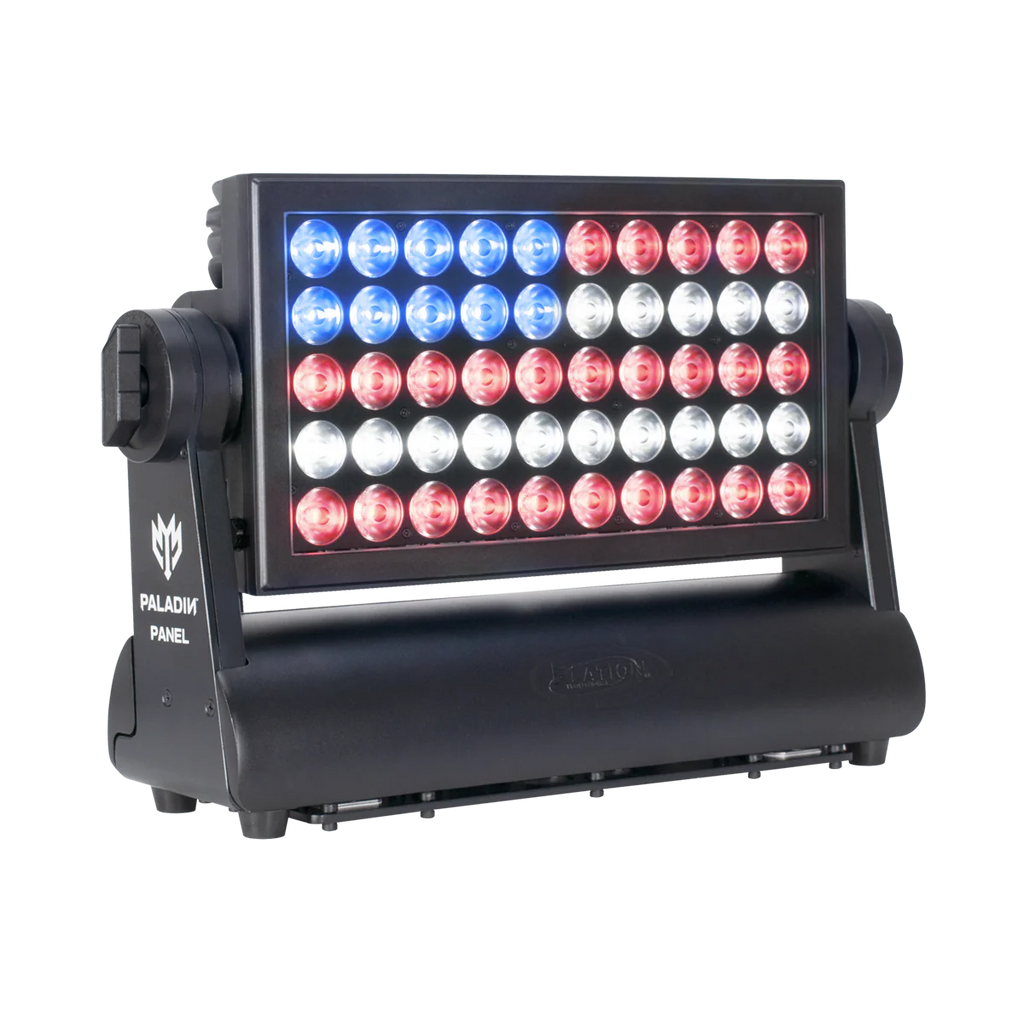

- 5x2 Cell Control

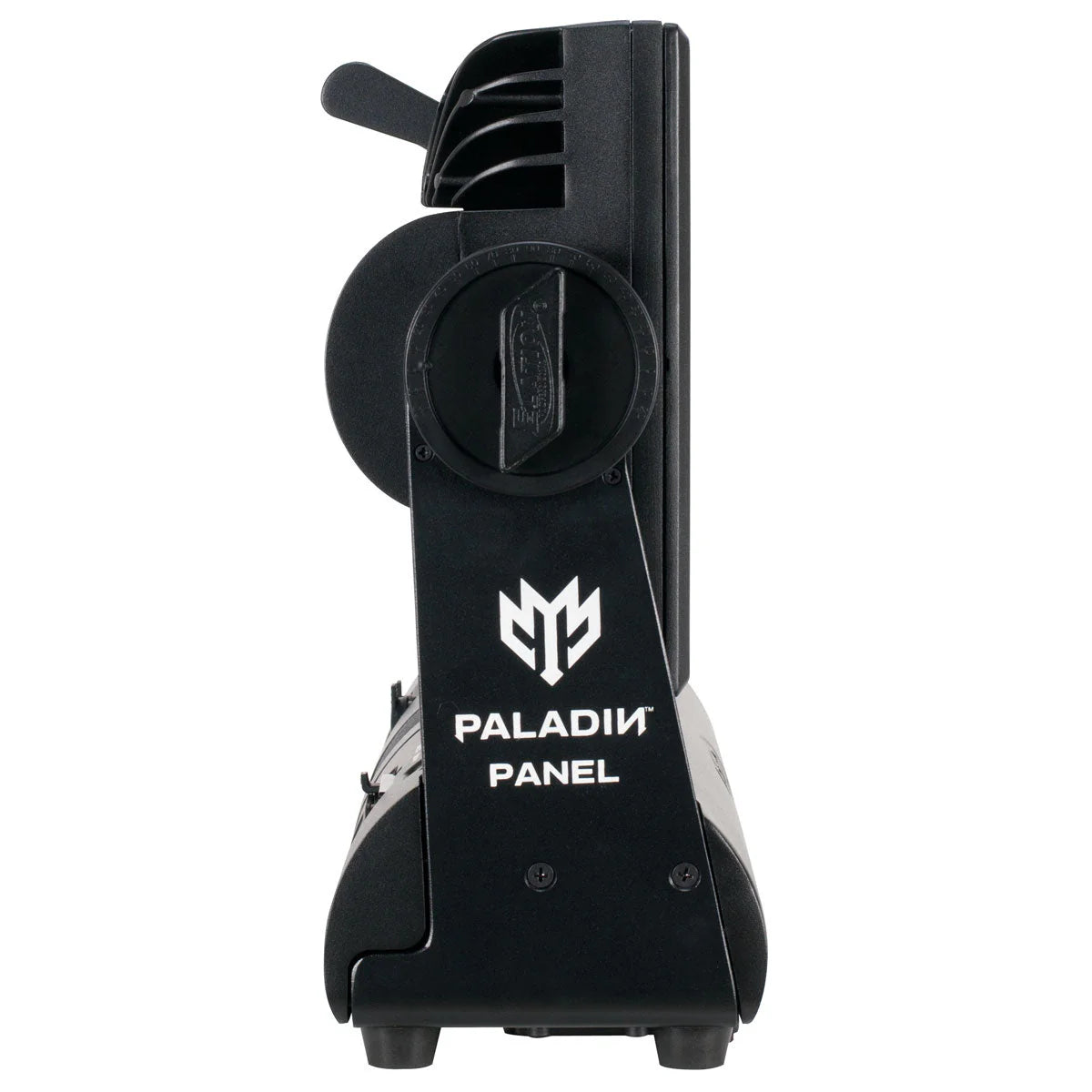

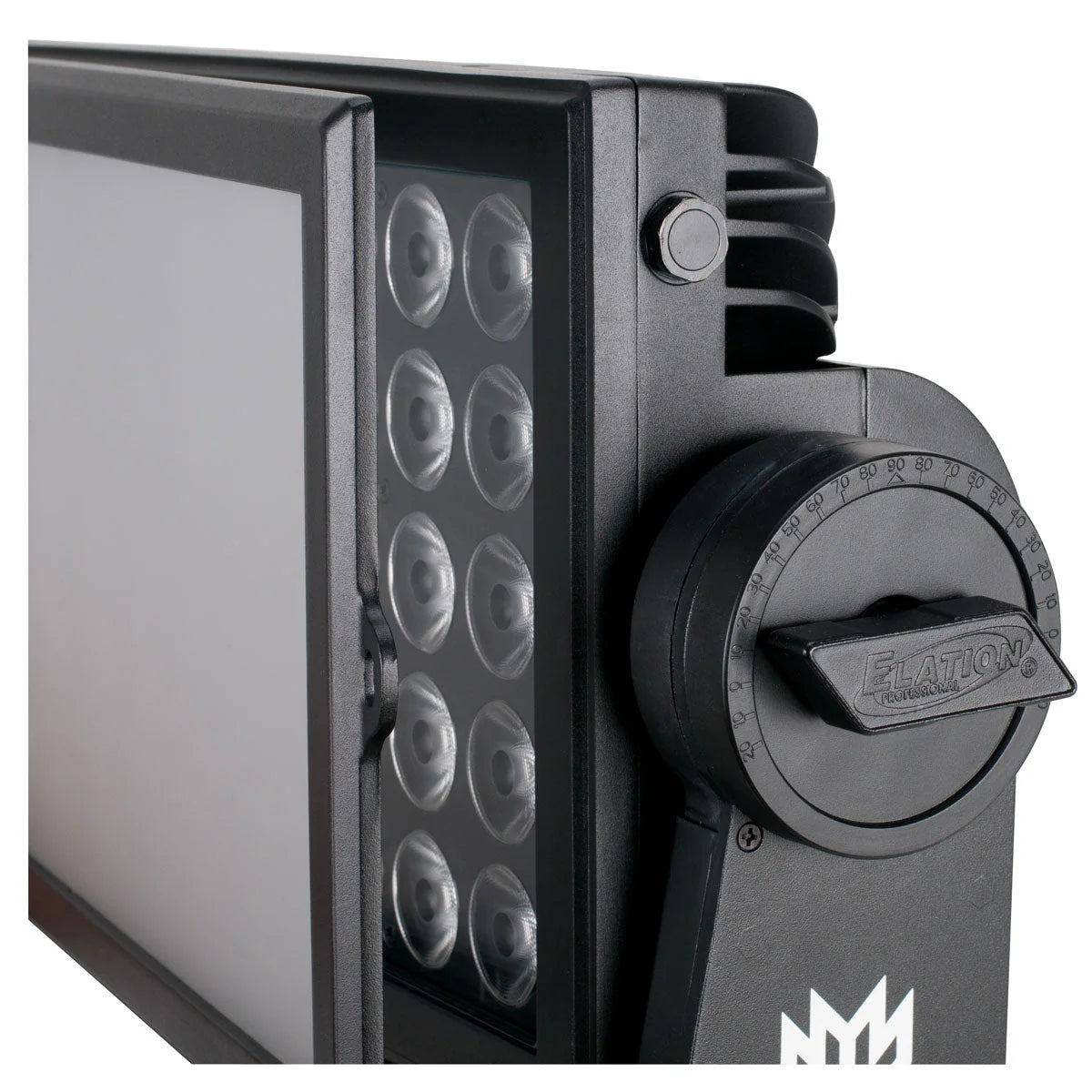

- Manual Tilt Adjustment
- DMX, RDM Protocol Support
- Standalone and Primary/Secondary Operation

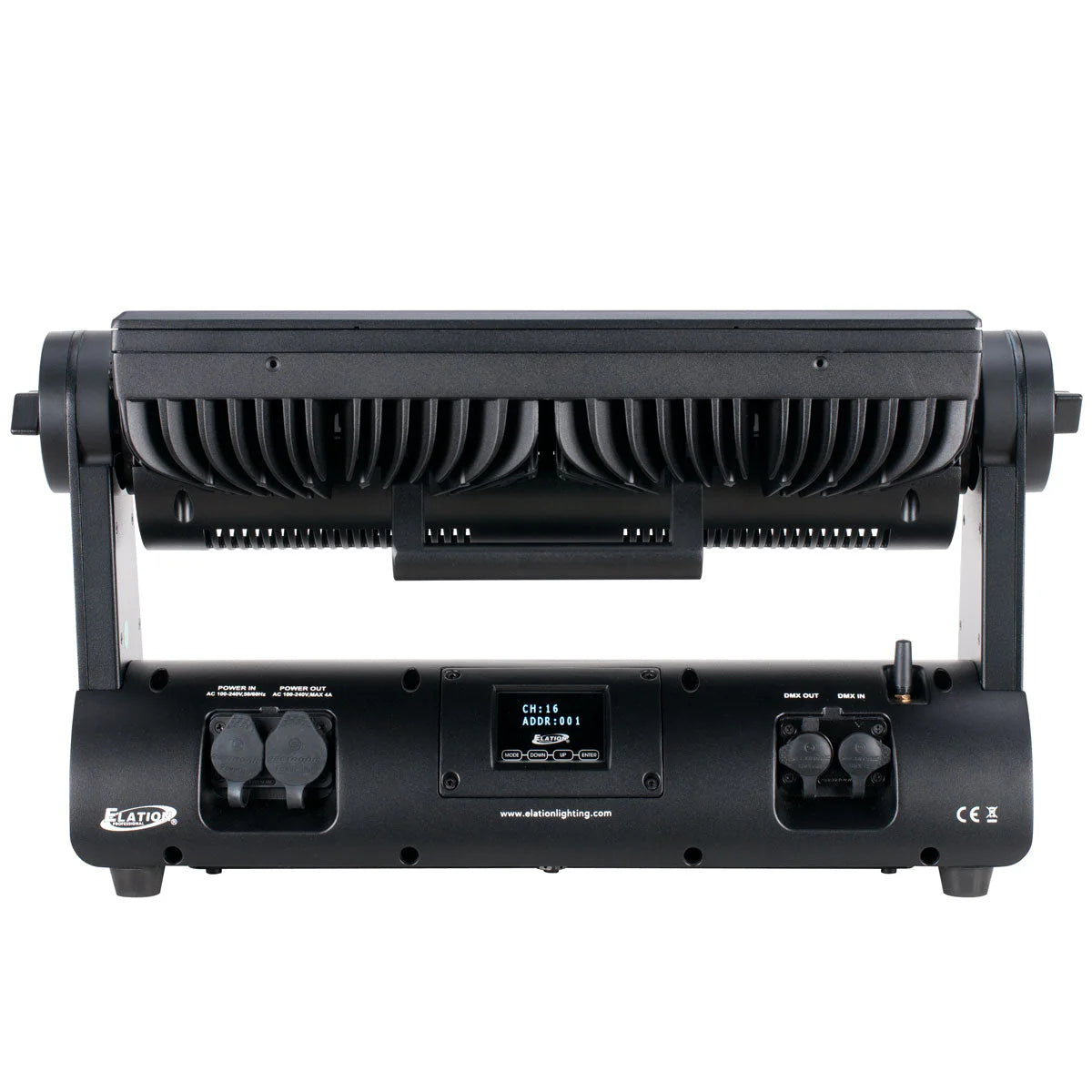

- 4 Button OLED Control Display
- Elation’s E-FLY™ Internal Wireless DMX Transceiver
- IP65 5pin DMX In/Out
- IP65 Power In/Out
- With Wired Digital Communication Network
SIZE / WEIGHT
- Length: 20.9” (531mm)
- Width: 5.8” (148mm)
- Height: 13.7” (348mm)
- Weight 33.0 lbs. (15kg)
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 800W Max Power Consumption
- 5°F to 113°F (-15°C to 45°C)
INCLUDED ITEMS:
- PAL285/60°LK- 60° Lens Kit
- Locking Power Cable
OPTIONAL ACCESSORIES:
- PAL285/100°LK- 100° Lens Kit

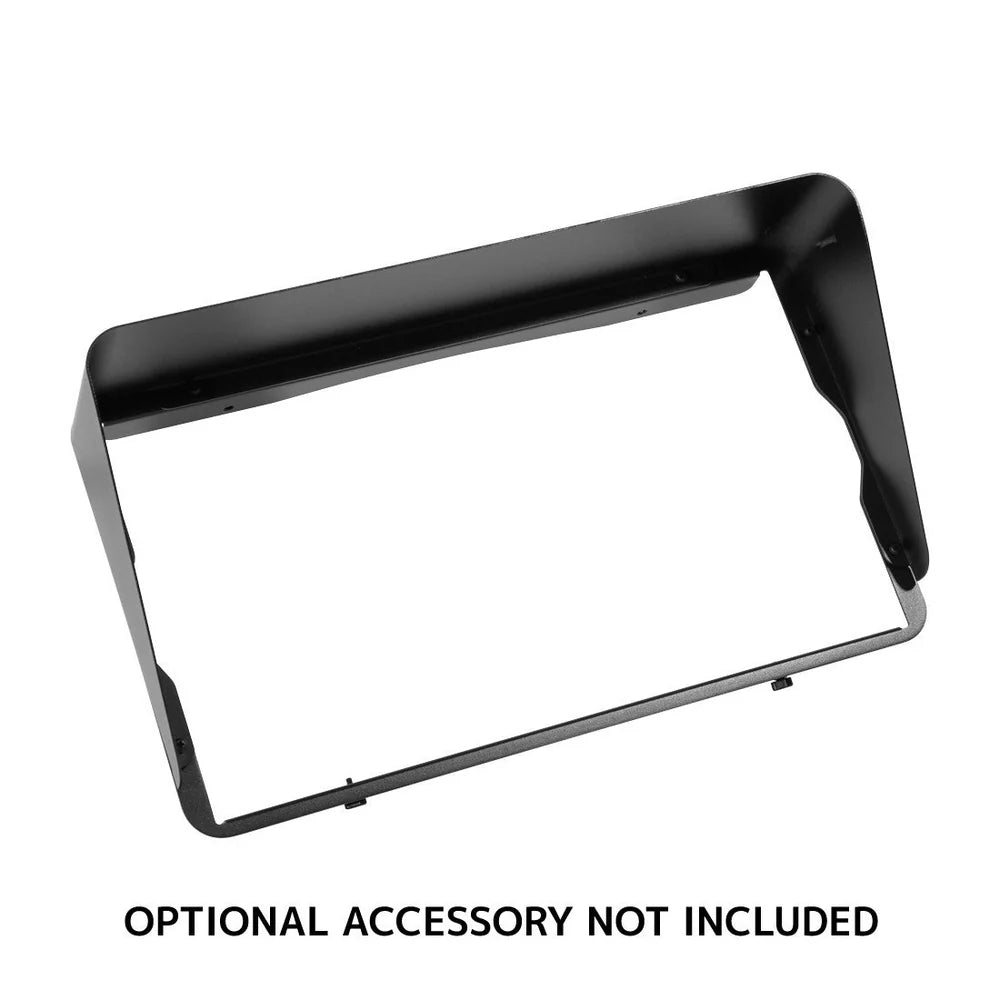

- PPBD - Barndoor

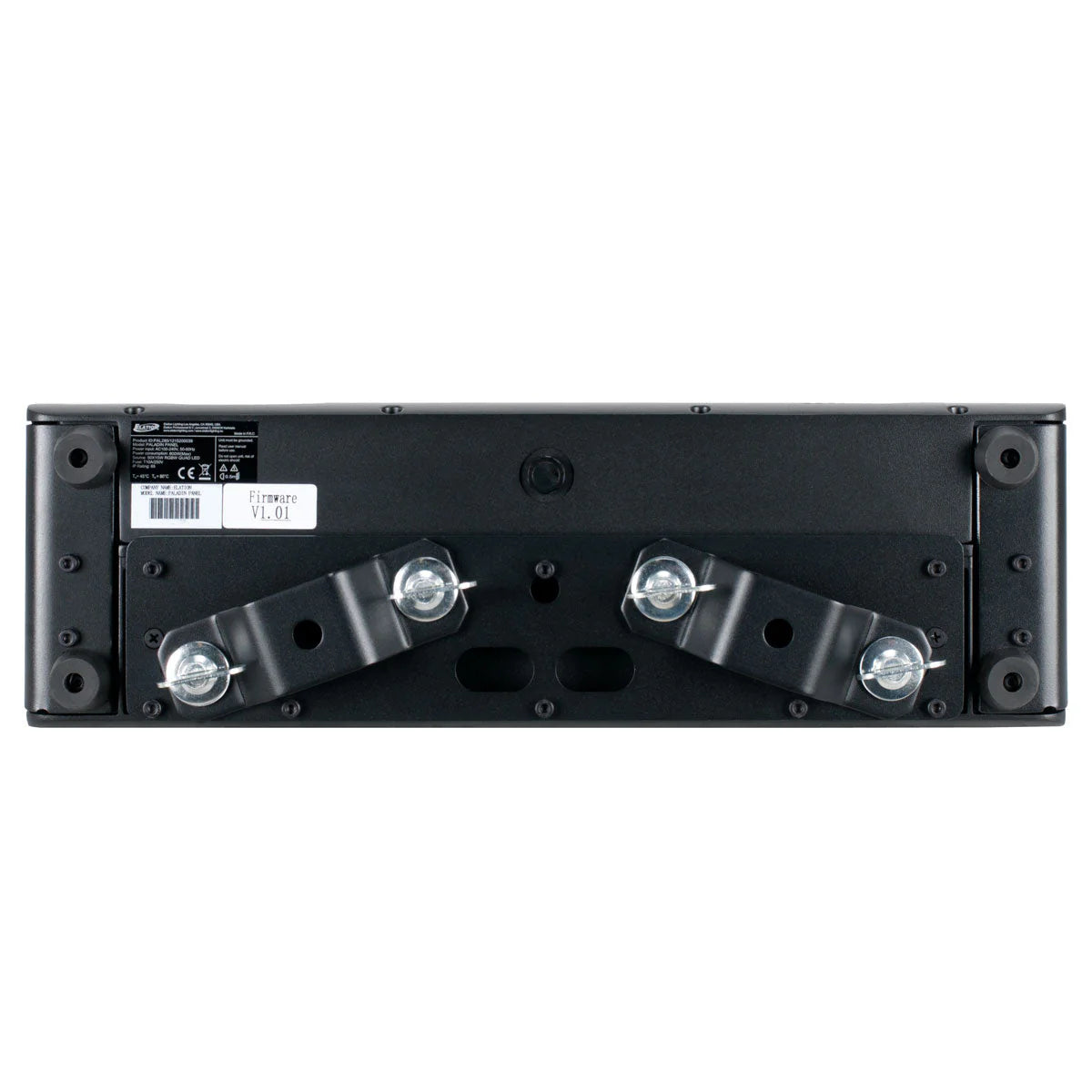

- Sku# 8050000053 108mm PIN TO PIN OMEGA BRACKET
