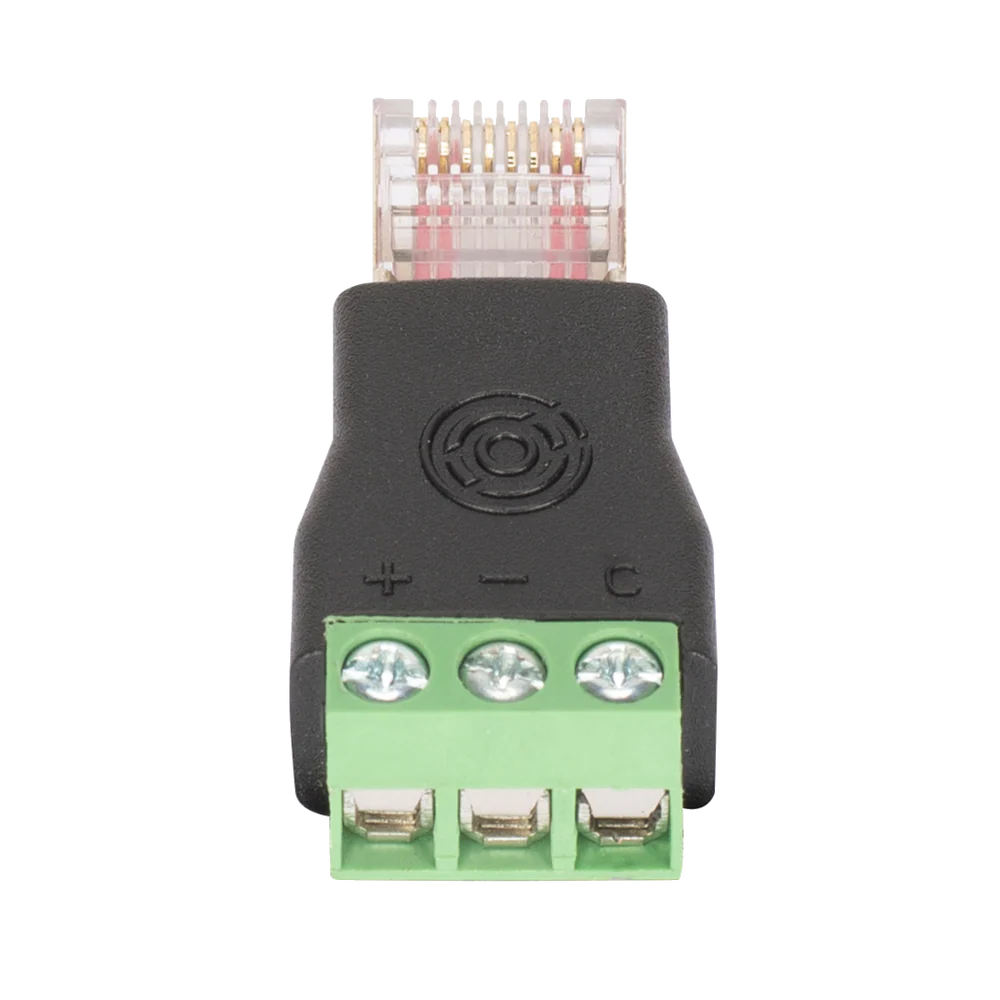

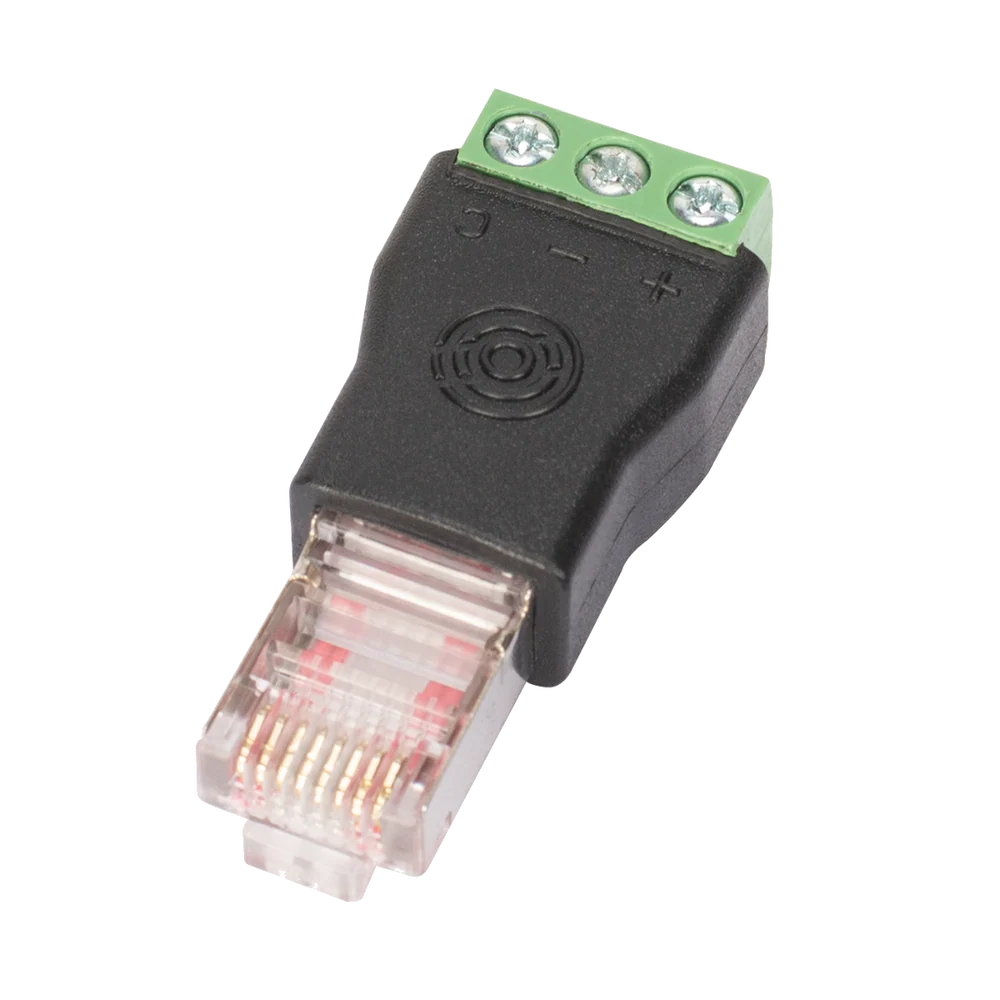

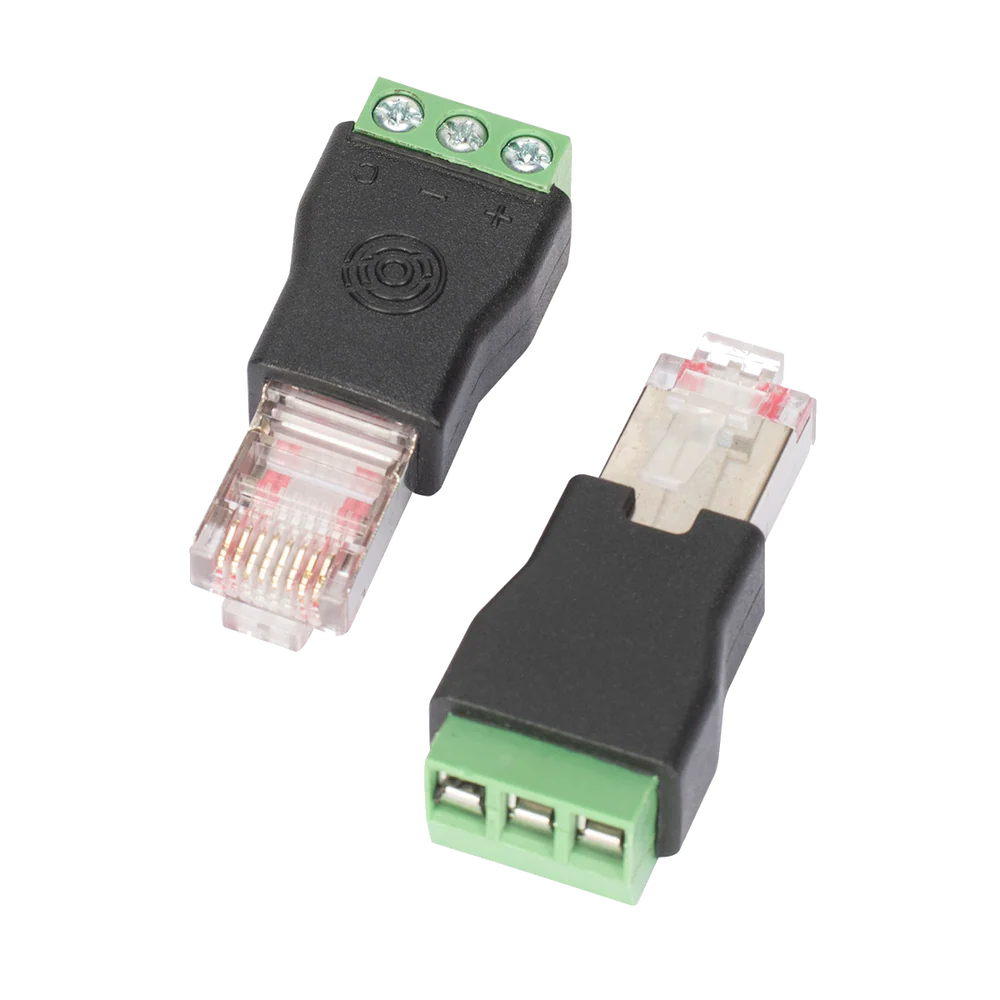

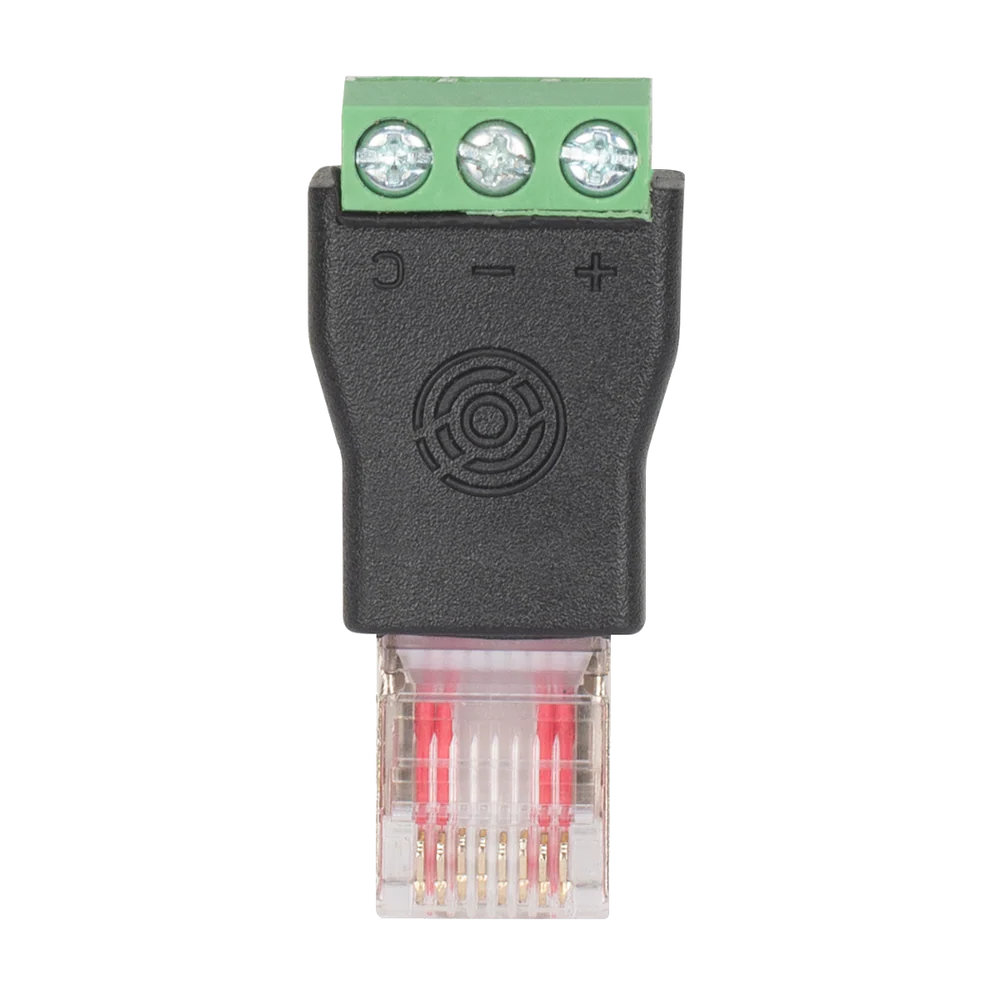

NETRON RJ-T
The NETRON RJ-T is a compact useful adapter to convert ESTA compliant RJ45 DMX ports to a 3-wire screw terminal. Ideal for installations of NETRON RJ45 products like the RDM645 or the EN12-45 it is also a compatible with any other existing RJ45 DMX wiring infrastructure.
SPECIFICATIONS
-
RJ45 to screw terminal DMX/RDM Adapter
-
ESTA compliant DMX pin-out
-
Compact and short injection molded housing
-
Compatible with all ESTA DMX compliant fixtures and DMX distribution devices
For technical details and documentation of NETRON devices please visit
https://obsidiancontrol.com/netron
-
RJ45 to screw terminal DMX/RDM Adapter
-
ESTA compliant DMX pin-out
-
Compact and short injection molded housing
-
Compatible with all ESTA DMX compliant fixtures and DMX distribution devices
Details
-
RJ45 Connection
-
ESTA Compliant DMX pin-out
-
3x Screw Terminals AWG 14-30
-

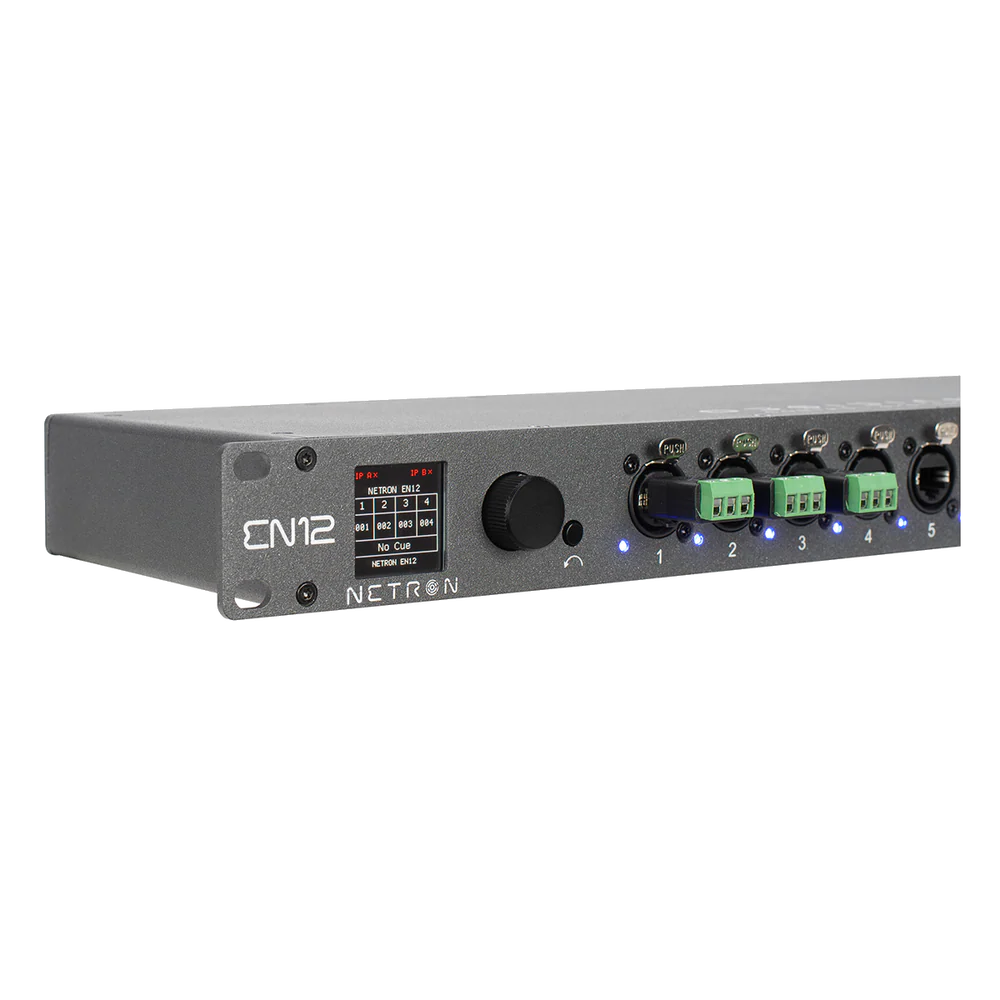

Compatible with EN12-45 and RDM645
Physical
-
Length: 43 mm (1.7 in.)
-
Width: 11 mm (0.43 in.)
-
Height: 18 mm (0.71 in.)
Included Items
-

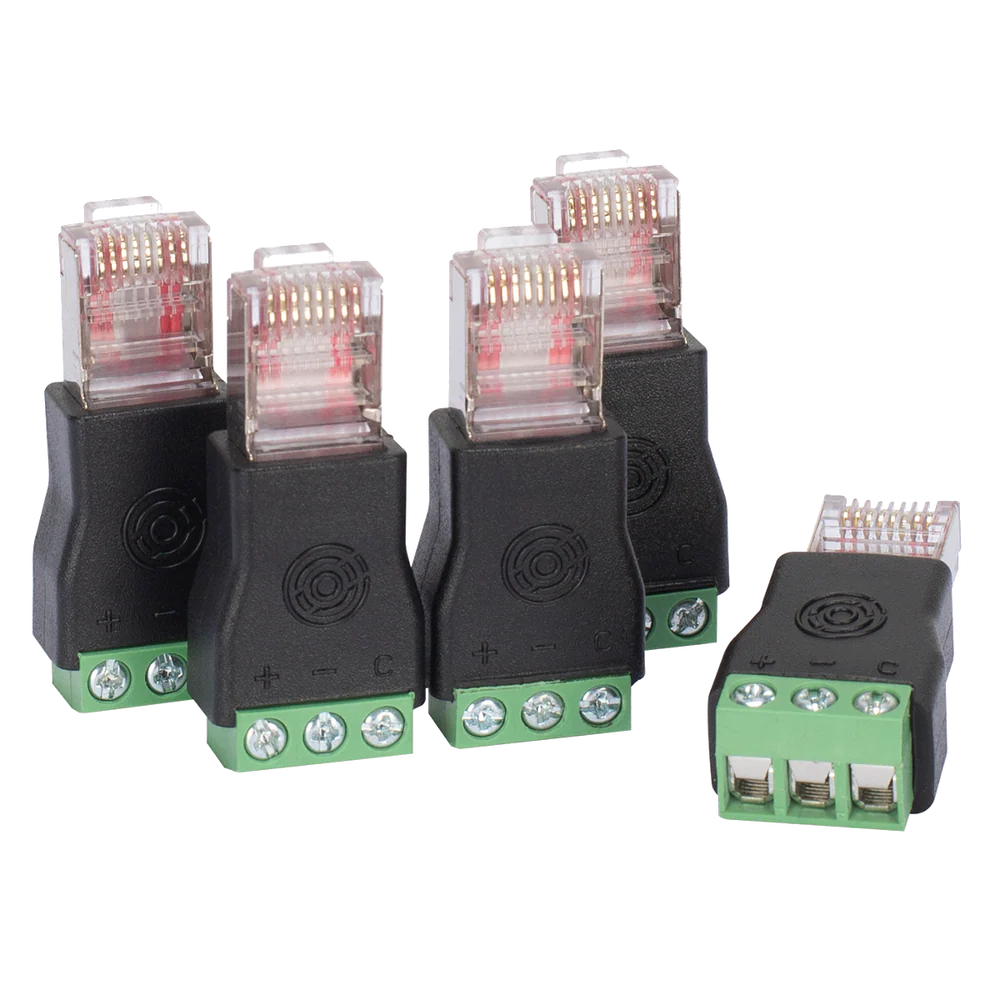

5x RJ45 DMX Adapter
