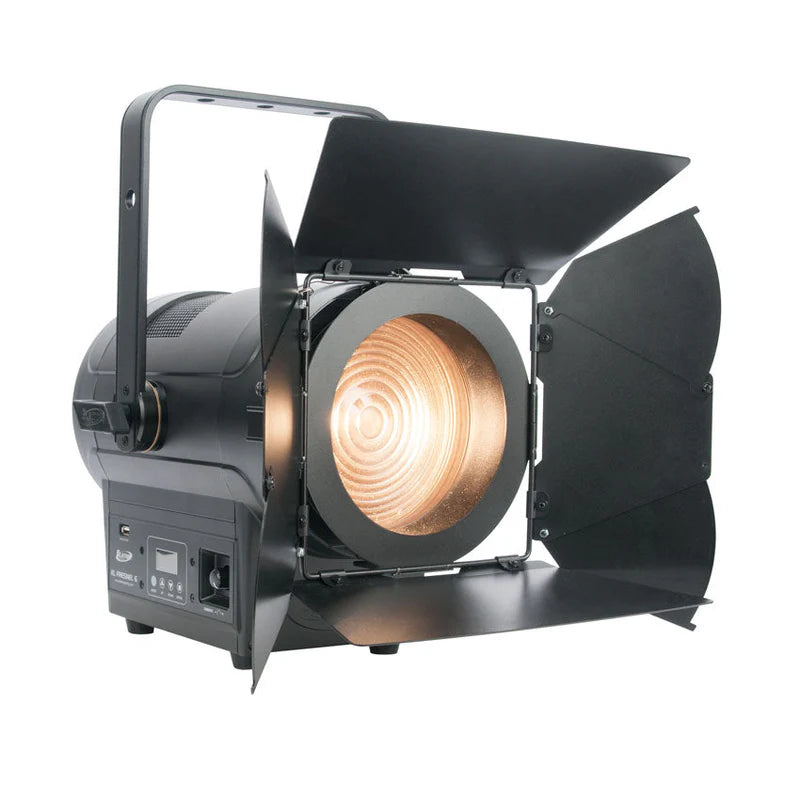

KL FRESNEL 6™ is a 150W 3,000K >95CRI Warm White LED fresnel, producing over 6,500 total lumen output, on par with compatible tungsten halogen models. Features include manual and DMX control, 15° to 38° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.
-
150W 3,000K >95CRI Warm White LED Engine
-
6,500+ Total Lumen Output
-
Output On Par with Tungsten Halogen Models
-
15° to 38° Wide Manual Zoom
-
Manual and DMX Controlled Dimmer and Shutter
-
Dimmer and Zoom Rotary Dials
-
Smooth 16-bit Selectable Dimming Modes and Curves
-
LED Refresh Rate Adjustment
-
Flicker Free Operation for TV and FILM
-
RDM (Remote Device Management)
-
Gel Frame and Rotating Barn Doors (included)
-
3 Clamp Position Adjustable Mounting Yoke
SPECIFICATIONS
SOURCE
-
150W >95CRI 3,000K Warm White LED
-
50,000 Hour Average LED Life*
*May vary depending on several factors including but not limited to:
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
-
6,500+ Total Lumen Output
-
17,829 LUX 1,656 FC @6.6’ (2m) (Min Zoom / Full ON)
4,412 LUX 410 FC @6.6’ (2m) (Max Zoom / Full ON) -
Zoom Range 15° - 38°
-
Beam Angle 15.5° - 38°
-
Field Angle 23.4° - 51.8°
EFFECTS
-
Manual Zoom
-
Electronic Dimmer and Strobe
-
Variable 16-bit Dimming Modes and Curves
COLOR
-
Warm White 3,000K
CONTROL / CONNECTIONS
-
Manual and DMX Controlled Dimmer and Shutter
-
Dimmer and Zoom Rotary Dials
-
(5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
-

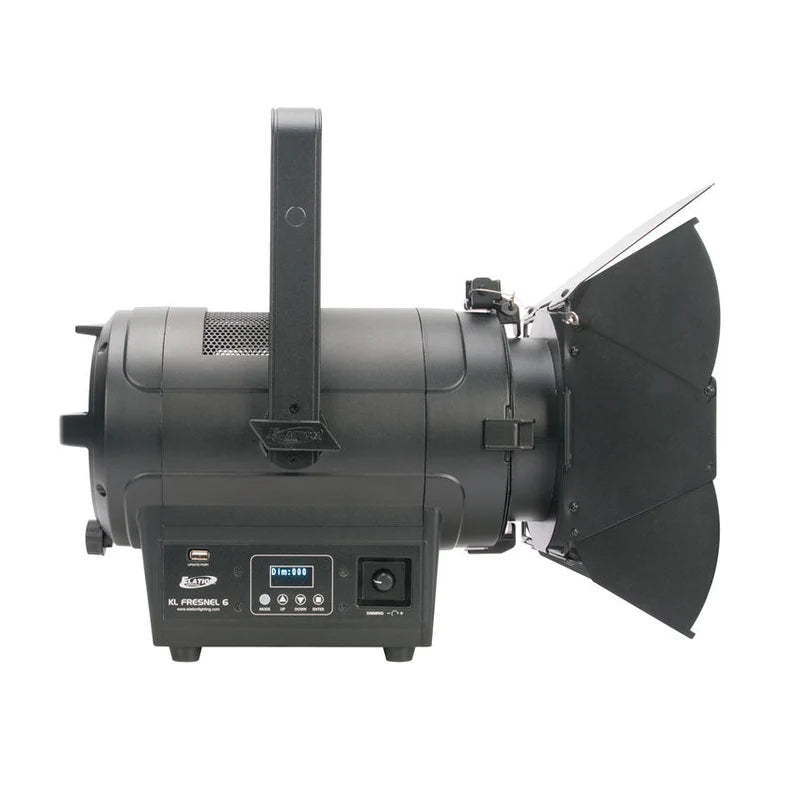

4 Button Control Panel LCD Menu Display
-
RDM (Remote Device Management)
-

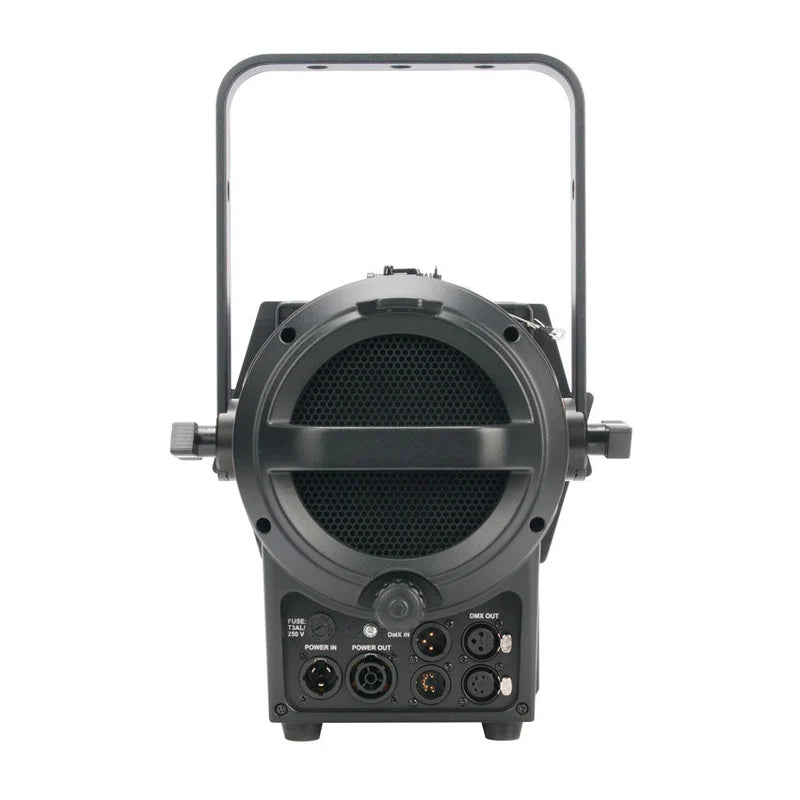

3/5pin DMX and IP65 Locking Power Cable In/Out
-
With Wired Digital Communication Network
SIZE / WEIGHT
-
Length: 19.62” (498.5mm)
-
Width: 10.75” (273mm)
-
Vertical Height: 15.47” (393mm)
-
Weight: 18.5 lbs. (8.4kg)
ELECTRICAL / THERMAL
-
AC 100-240V - 50/60Hz
-
180W Max Power Consumption
-
5°F to 113°F (-15°C to 45°C)
-
Power Linking: 6Pcs @ 110V / 14Pcs @ 240V
INCLUDED ITEMS
-

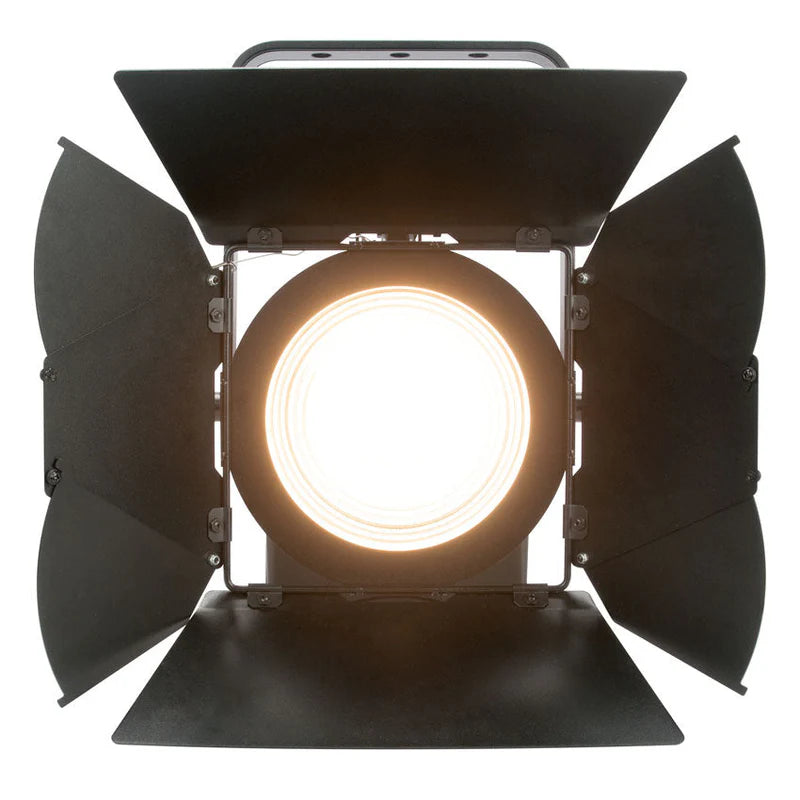

Gel Frame and Rotating Barn Doors
-
IP65 Locking Power Cable
-
Barn Doors
APPROVALS / RATINGS
-
CE | cETLus | IP30
