The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output. Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.

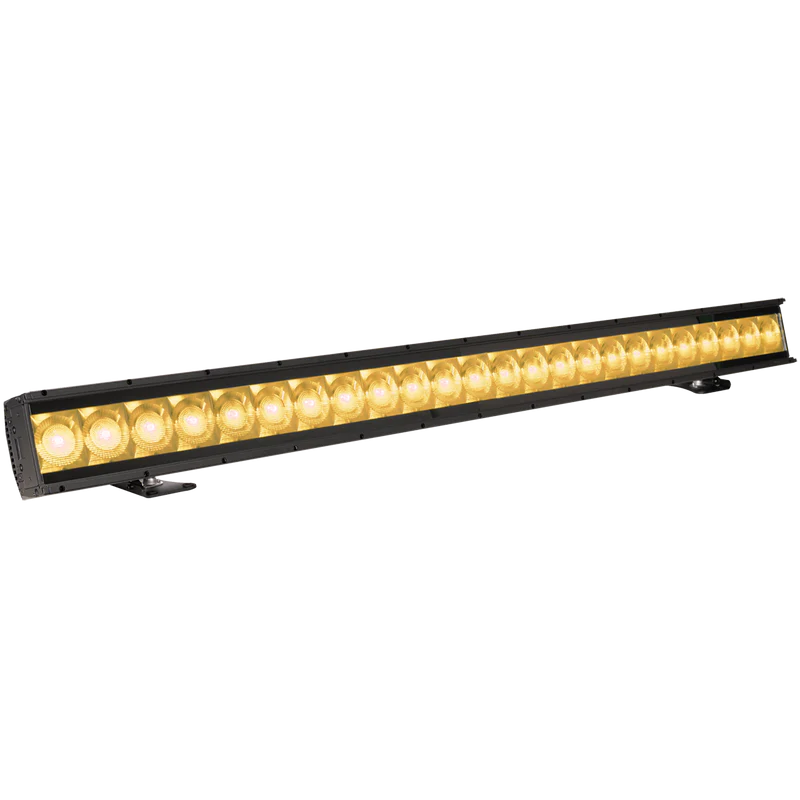

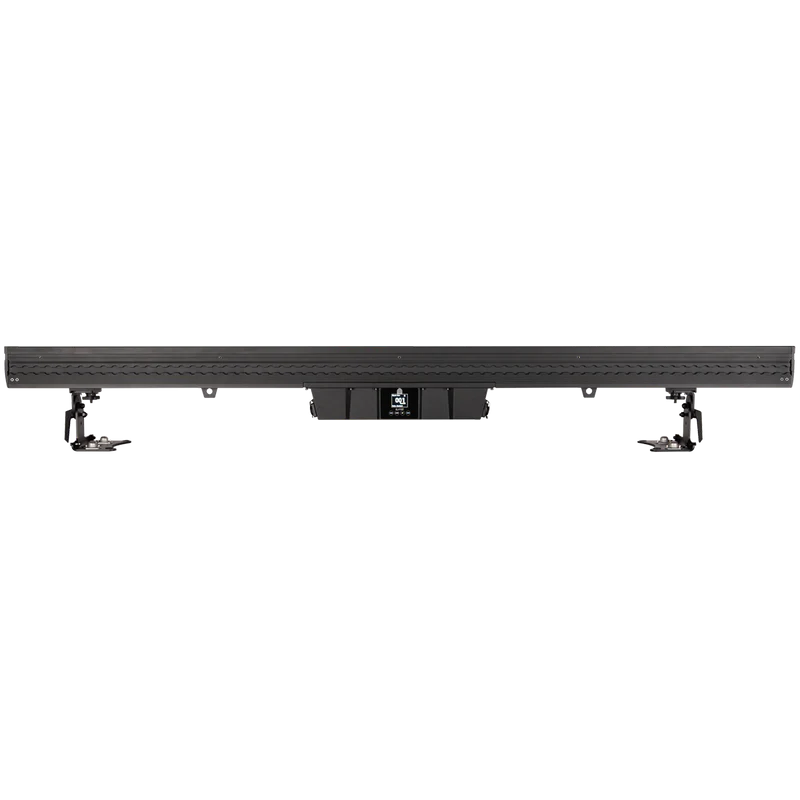

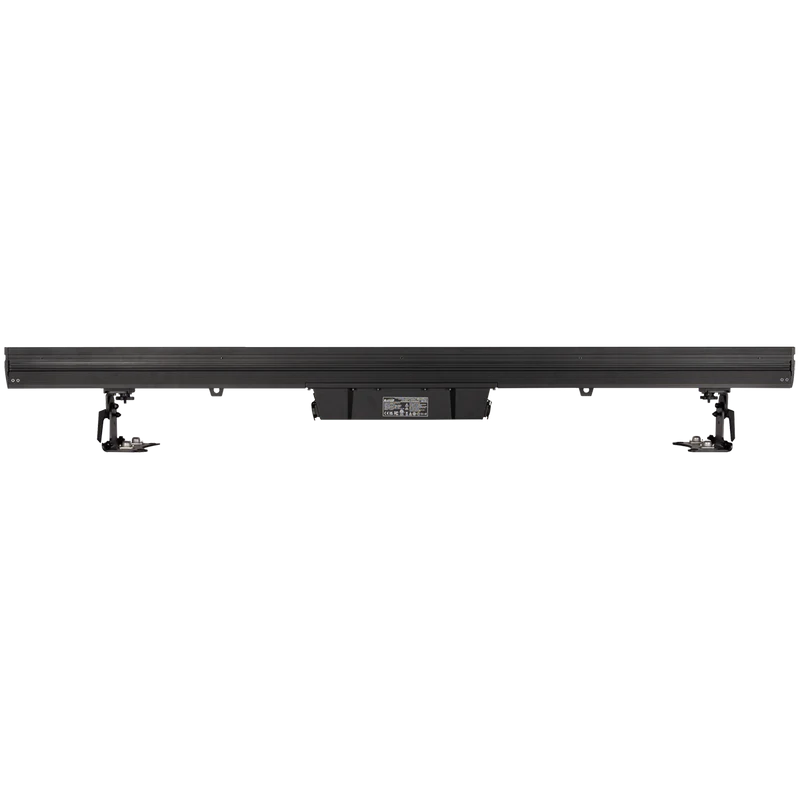

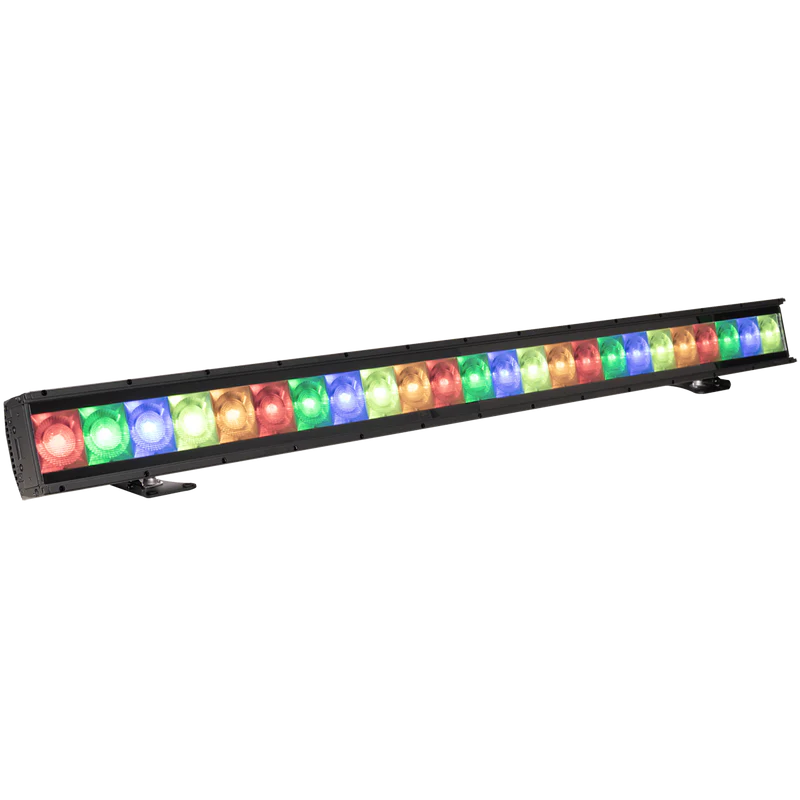

KL BATTEN 72
The KL BATTEN 72 is built for stages and studios that demand rich, full-spectrum color and commanding output.
Its advanced RGBMA engine delivers smooth, natural light that blends cleanly across scenery. At the same time, more than 61,000 lumens provide confident, room-filling coverage for large cycs, wide sets, and high-impact scenic looks.
A weather-ready housing and integrated L-Track system make installation easy indoors or out, and its advanced control options ensure reliable performance—from subtle color shifts to complex pixel-mapped effects.
For designers who rely on both power and precision, the KL BATTEN 72 delivers the bold, consistent results that anchor any professional lighting design.
- (24) 100W RGBMA LED Array
- 61,275 Total Fixture Lumen Output (Sphere)
- Full Pixel Control
- Integrated Lens and Accessory Slots
- Art-Net & sACN Support

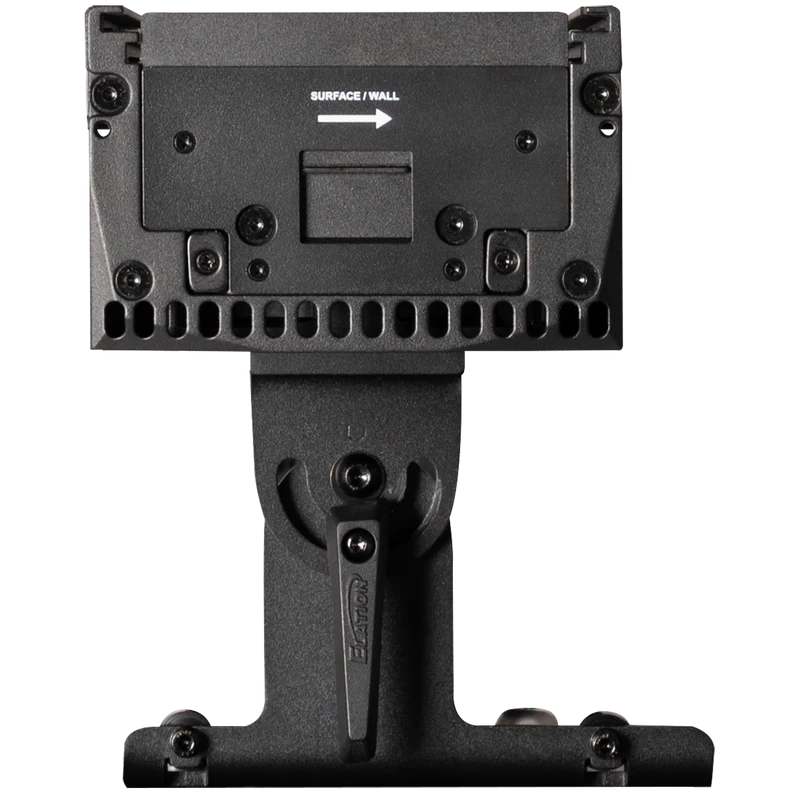

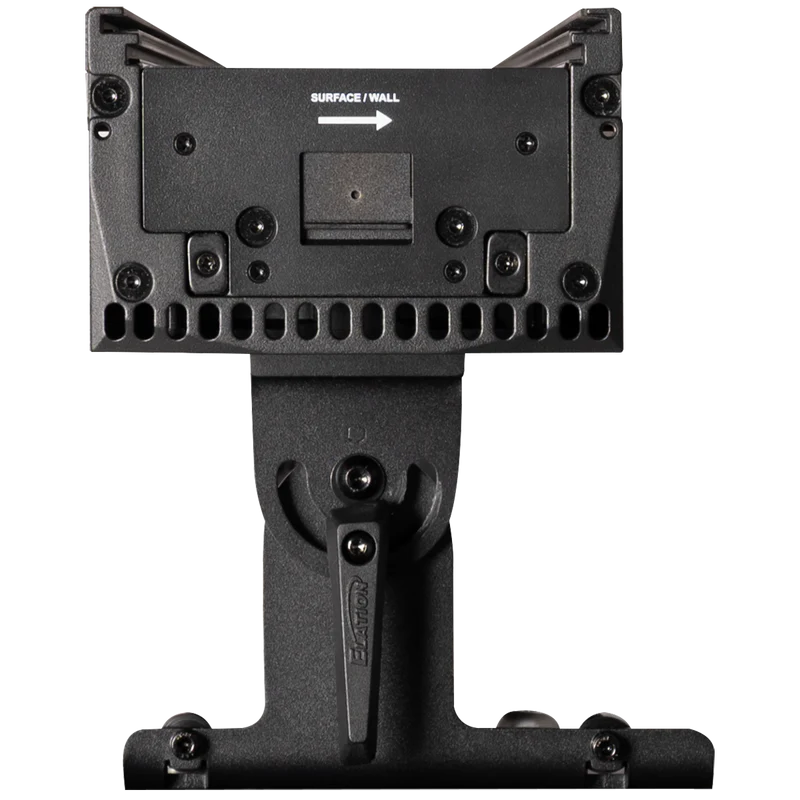

- Integrated L Track for Flexible Mounting
- End-to-End Magnetic Alignment System
- NFC & Aria x2 Wireless Device Management
- IP65 Rated
SPECIFICATIONS
SOURCE
- (24) x 100W RGBMA LEDs
- 30,000 Hour Average LED Life*
Environmental Conditions, Power/Voltage, Usage Patterns (On-Off Cycling), Control and Dimming.
PHOTOMETRIC DATA
- Total Lumen Output:
- 61,275 (Integrating Sphere)
- CRI- 94.9
- TLCI- 95
- Beam Angle: 82° x 22°
- Field Angle: 97° x 53°
EFFECTS

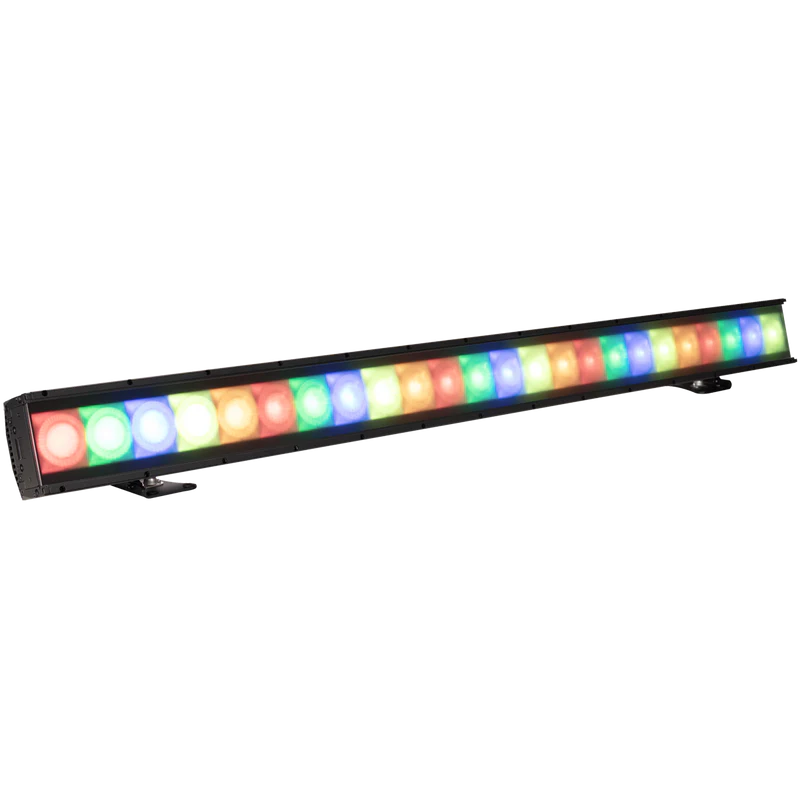

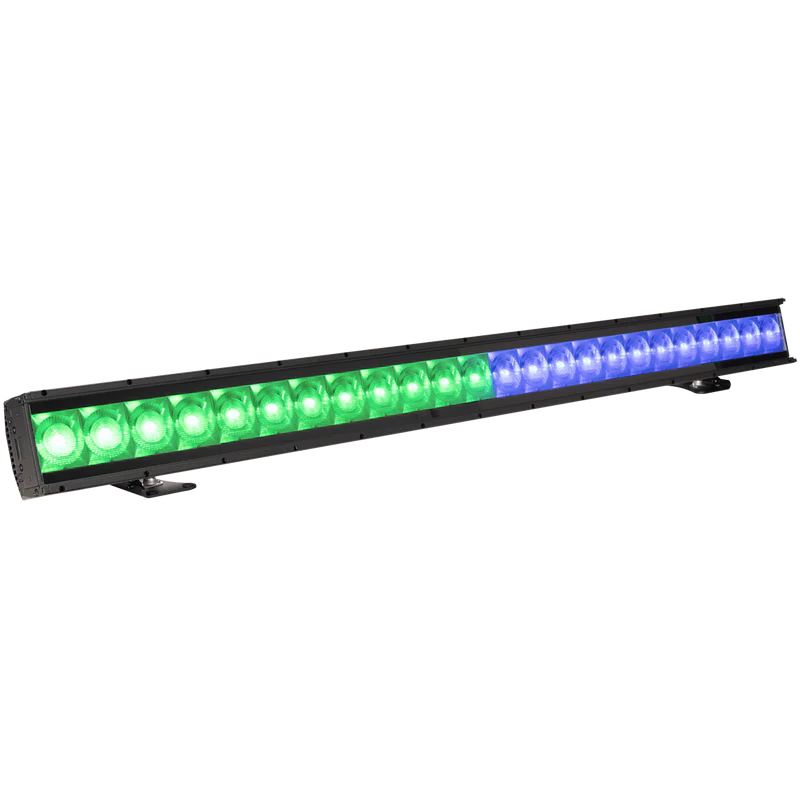

- Full Pixel Control
- Electronic Dimmer and Strobe
- Variable 16-bit Dimming Modes and Curves
COLOR

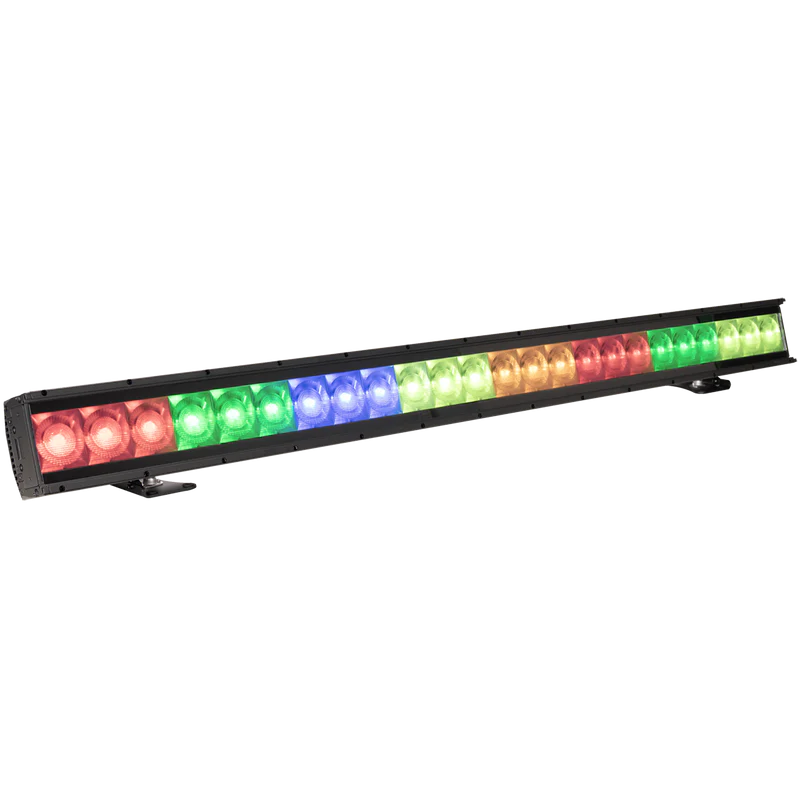

- RGBMA Color Array
- CMY Emulation
- 16bit Fully Variable CCT 2400K - 8500K
- Green/Magenta Shift
- Dim-to-Warm Fade
- Virtual Gel Swatch Book
CONTROL / CONNECTIONS
- 52 DMX Channel Modes (1ch, 3ch-A, 4ch-A, 4ch-B, 3ch-B, 6ch-A, 10ch, 14ch, 22ch, 16ch-A, 6ch-B, 8ch, 6ch-C, 20ch-A, 20ch-B, 35ch, 9ch-A, 12ch-A, 9ch-B, 30ch, 26ch, 48ch-A, 12ch-B, 16ch-B, 12ch-C, 40ch, 32ch-A, 61ch, 18ch-A, 24ch-A, 18ch-B, 60ch, 44ch, 87ch, 25ch-B, 32ch-B, 24ch-C, 80ch-A, 56ch, 113ch, 36ch-A, 48ch-B, 36ch-B, 120ch, 80ch-B, 165ch, 72ch-A, 96ch, 72ch-B, 240ch, 152ch, 321ch)
- 4 Button Control Panel, Color LED Display
- RDM (Remote Device Management)
- Aria x2 Wireless Device Management
- NFC Configuration

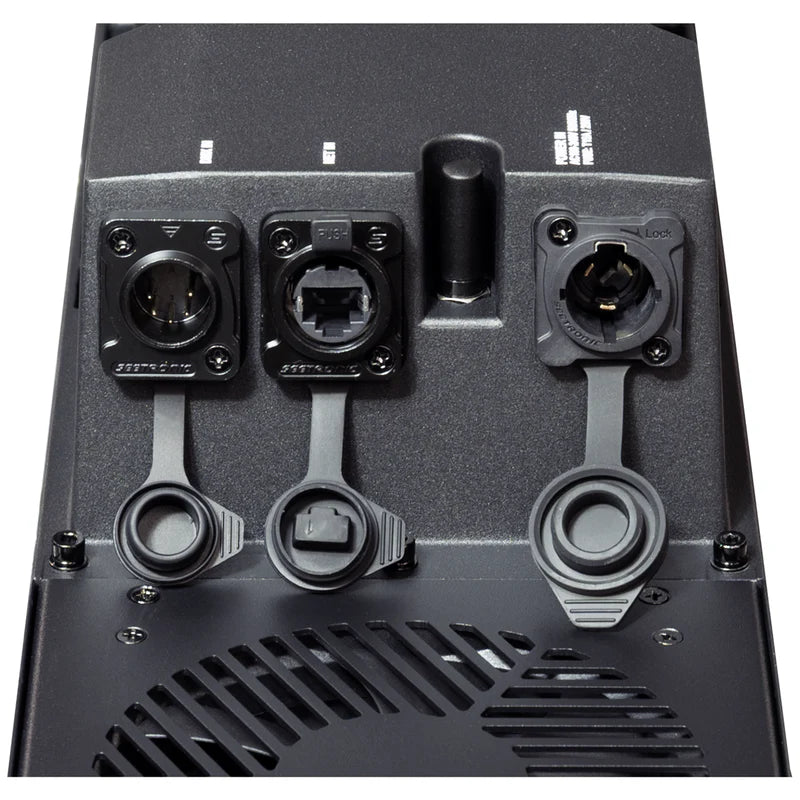

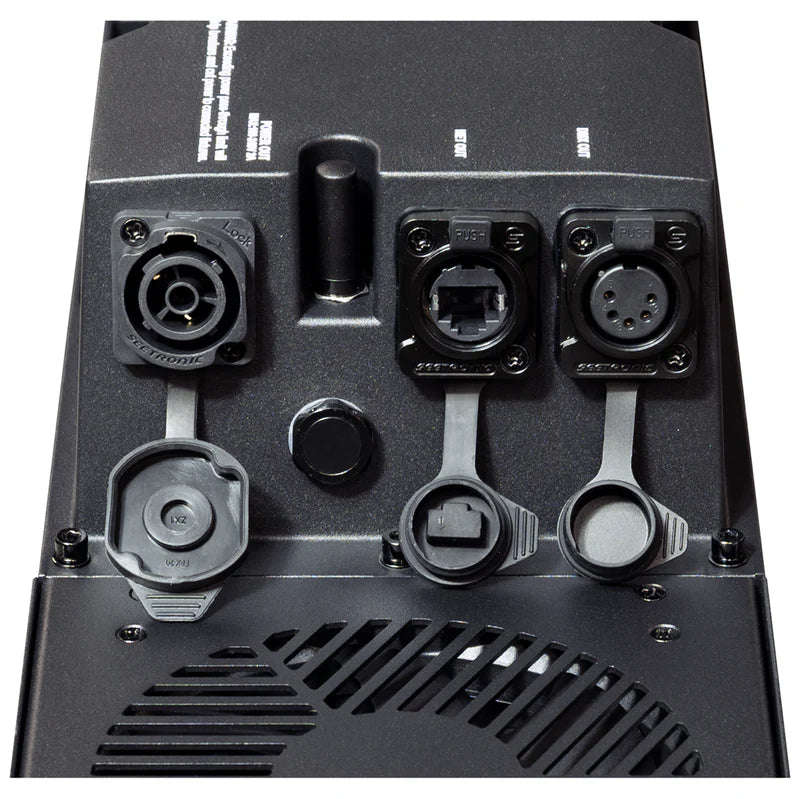

- IP65 5pin XLR DMX In/Out
- IP65 RJ45 Ethernet In/Out (Art-Net sACN)
- IP65 Locking Power Cable In/Out
SIZE / WEIGHT
- Length: 71.1" (1806mm)
- Width: 7.2" (184mm)
- Vertical Height: 9.4” (239mm)
- Vertical Height (Low Clearance): 8.6" (219)
- Weight: 60.4 lbs / 27.4kg
ELECTRICAL / THERMAL
- AC 100-240V - 50/60Hz
- 1200W Max Power Consumption
- Power Thru Capacity: 2A
- 5°F to 113°F (-15°C to 45°C)
- BTU/hr (+/- 10%) 4,092

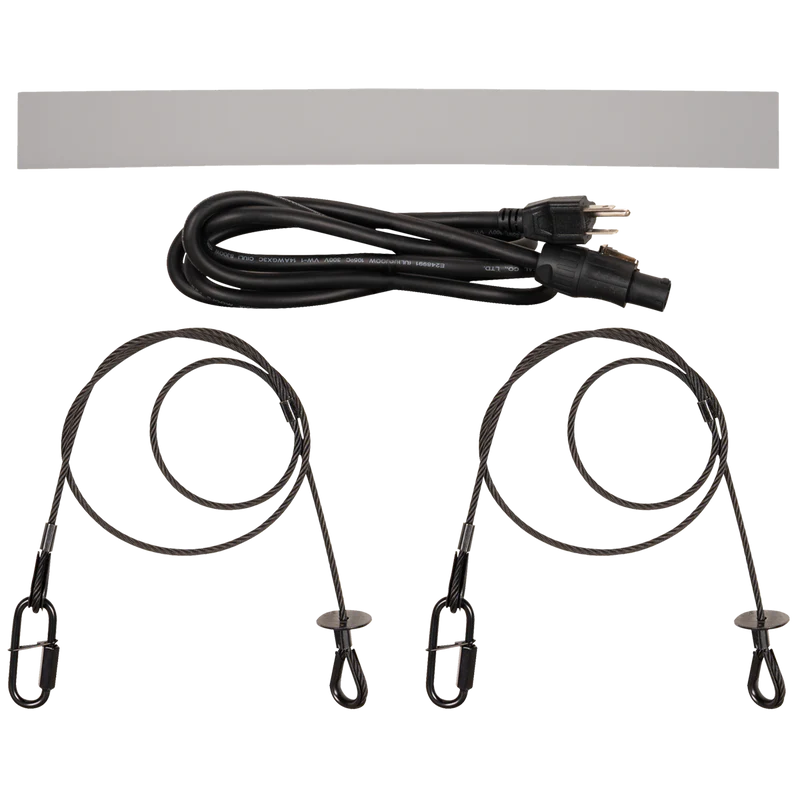

INCLUDED ITEMS
- Glare Shield
- Border Light Filter
- 2x Safety Cable
- IP65 Locking Power Cable
OPTIONAL ITEMS
- Omega Bracket (Qty.2)
- L-Track to M10 Adapter,70mm (LTR001)
- L-Track to M10 Adapter, 44.5mm (LTR008)
- L Track C-Clamp Adapter Assembly, 70mm (LTR100)
- L Track C-Clamp Adapter Assembly, 44.5mm (LTR112)
APPROVALS / RATINGS
- CE | cETLus | IP65 | FCC | UKCA
Specifications and documentation subject to change without notice.
