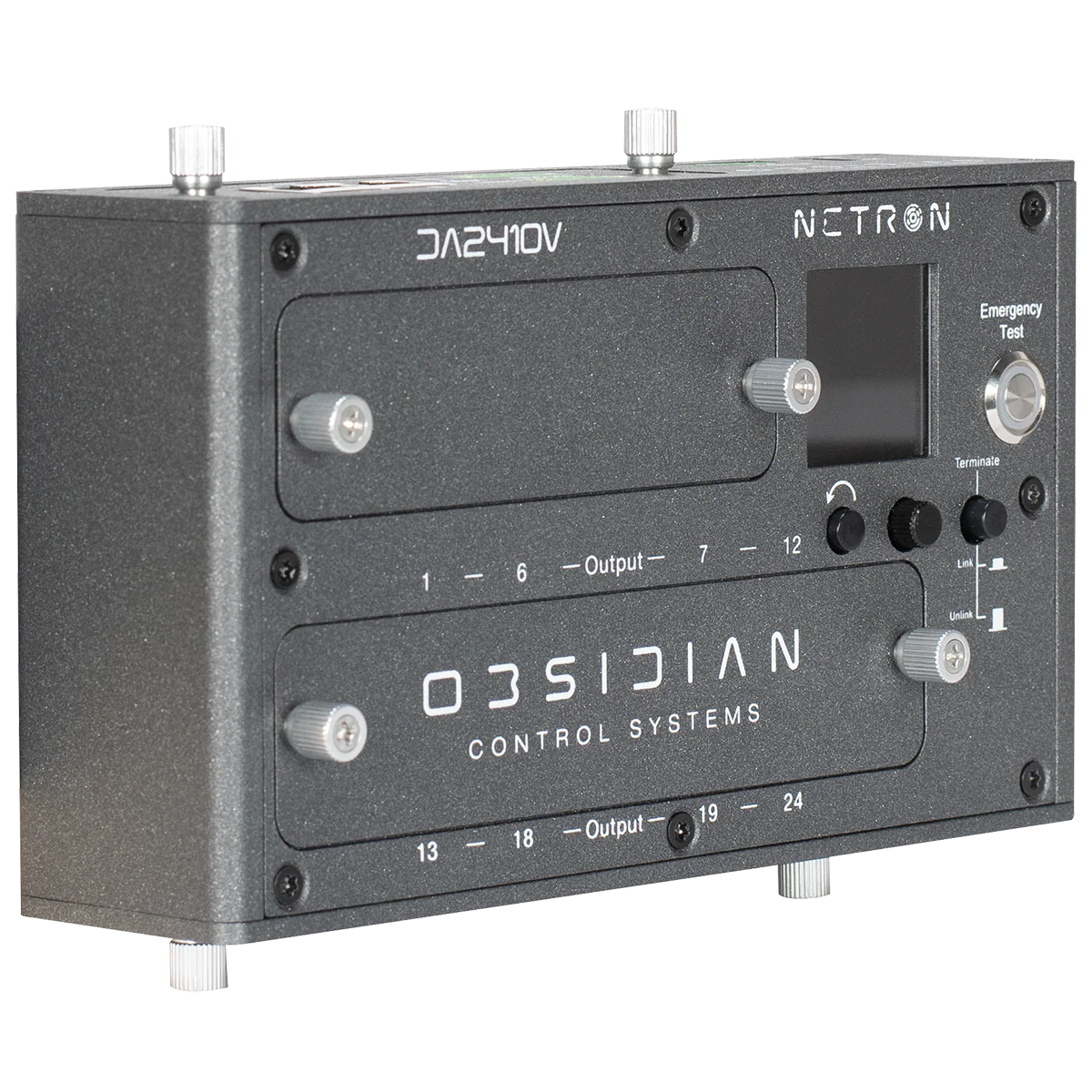

DA2410V; 24-Port 0-10V Node DIN
-
The Netron DA2410V is a compact DIN Rail or Wall Mount Ethernet or DMX gateway with 24x 0-10V analog outputs.
-
Easy to configure from its OLED display, it suports DMX, Art-Net or sACN as the source.
-
The innovate connector configurations allow the NETRON DA2410V to be configured with screw-terminals or IDC (Insulation displacement connectors). All options are included through exchangeable plates, which can be installed on the top /bottom or front of the device, depending on installer preference or space considerations.
-
Additionally, the DIN Rail brackets can be exchanged with wall mount brackets for an alternative mounting option.
-
The NETRON DA2410V supports a wide range DC Input from 12-48V.
-
The NETRON DA2410V is UL924 compliant with a dedicated emergency cue, wet or dry contact closure and a prominent test button with integrated LED feedback. The device allows to record a custom cue, a unique level per channel or set all analog outputs to 100%. Emergency off timeout can be customized and individual channels excluded from the emergency cue.
